Product Description

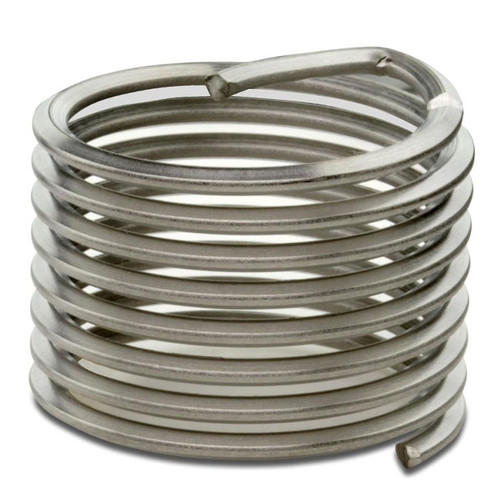

#10-32 TPI, 0.236 to 0.256" OD, 0.38" L, 304 Stainless Steel, 9-1/2-Coils, Diamond Knurled, Free Running, Screw Threaded Insert T1191-3C380
Screw Threaded Insert Type Diamond Knurled, Free Running Nominal Diameter #10 TPI 32 Thread Series UNF-2A External Thread Size 0.236 to 0.256 Inch Drill Size 13/64 Inch Overall Length 0.38 Inch Material AS7245 304 Stainless Steel Tensile Strength 200000 to 250000 PSI Application Plastic Diameter 2 Number of Coils 9-1/2 Locking Torque 13 Inch-Pound Countersink 0.23 to 0.26 Inch Applicable Standard NASM8846, NAS1130, ASME B18.29.1
Product Videos
Custom Field
Grip Range 2
Inner Diameter (I.D.) 0.236 to 0.256 in.
Length 0.38 in.
Pitch 0.236 to 0.256 in.
Thread #10-32 TPI
Type Diamond Knurled, Free Running
