Product Description

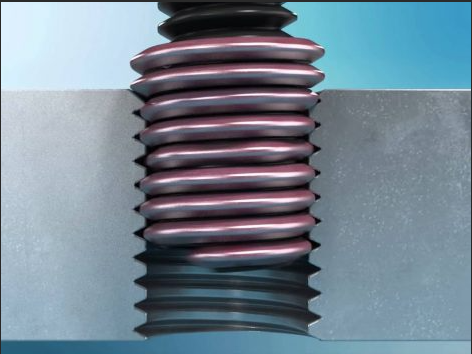

The NAS1130-3L10D Screw Threaded Insert from Helicoil / Stanley Engineered Fastening is a high-performance, screw-locking insert engineered for durable fastening in plastic components. Built from AS7245-certified 304 stainless steel, this insert delivers exceptional tensile strength (200,000–250,000 PSI) and long-term corrosion resistance.
Featuring a diamond-knurled exterior for superior pull-out resistance and a reliable screw-locking internal thread, this insert ensures fastener retention even in high-vibration environments. A dry film lubricant finish enhances assembly efficiency while maintaining stable friction characteristics.
With its #10-32 UNF thread, compact 0.19 in. length, and 4-1/8 coil configuration, the NAS1130-3L10D is ideal for plastic assemblies requiring dependable torque lock, repeatable serviceability, and compliance with aerospace and defense standards including NASM21209, NASM8846, NAS1130, and ASME B18.29.1.
Product Specs
- SKU:
- NAS1130-3L10D
- Grip Range:
- 1
- External Thread Size (OD):
- 0.236 to 0.256 in
- Length:
- 0.19 in.
- Material:
- AS7245 304 Stainless Steel
- Thread:
- #10-32 UNF, Screw-Locking
- Type:
- Diamond Knurled Threaded Insert
- Tensile Strength:
- 200,000 to 250,000 PSI
- Number of Coils:
- 4-1/8
- Countersink Diameter:
- 0.23 to 0.26 in
