Product Description

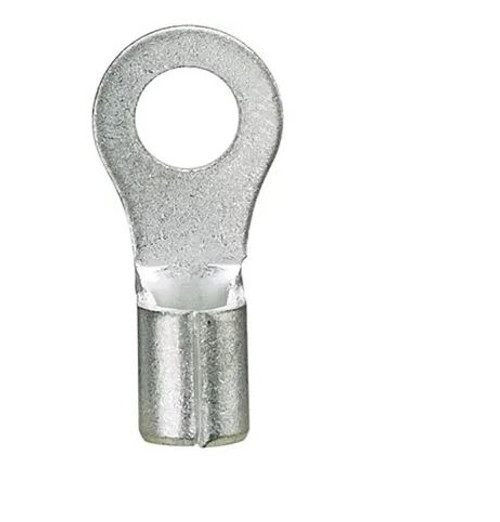

0.62" x 0.25" x 0.03", 16 to 14 AWG, #6 Stud, Metallic, Non-Insulated, Standard, Ring Terminal
Ring Terminal Type Standard Minimum Conductor Size 16 AWG Maximum Conductor Size 14 AWG Color Metallic Insulation Type Non-Insulated Stud Size #6 Temperature Rating 650 Deg F Standard Package 100 Approval UL 486A/B, UL (Canada and US), CSA C22.2 RoHS Compliant Barrel Type Brazed Seam Voltage Rating 2000 Volt Overall Dimension 0.62 Inch Length x 0.25 Inch Width x 0.03 Inch Thickness Wire Strip Length 9/32 Inch Material Nickel Plated Copper
Product Specs
- SKU:
- P14-6RHT6-C
- Color:
- Metallic
- Conductor Size:
- 16-14 AWG
- Finish:
- Nickel Plated
- Length:
- 0.620 in.
- Material:
- Copper
- RoHS Compliant:
- yes
- Temperature Rating:
- 650 Deg F
- Thickness:
- .03 in.
- Type:
- Standard
- Width:
- 0.250 in.
