Product Description

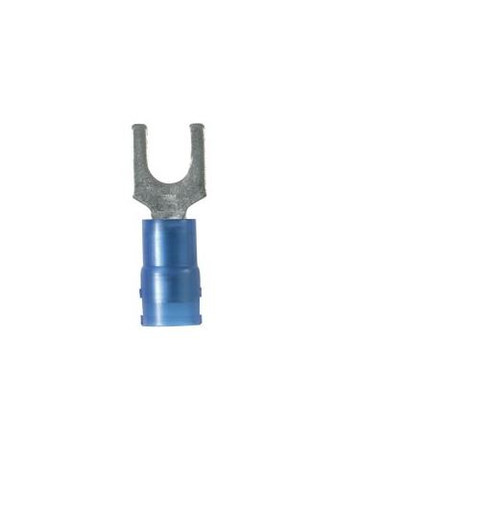

16 to 14 AWG, #6 Stud, Blue, Vinyl Insulated, Funnel Entry, Standard, Fork Terminal
Fork Terminal Type Funnel Entry, Standard Minimum Conductor Size 16 AWG Maximum Conductor Size 14 AWG Color Blue Insulation Type Vinyl Insulated Stud Size #6 Temperature Rating 221 Deg F Standard Package 100 Approval UL 486A/B, UL (Canada and US), CSA C22.2 RoHS Compliant Barrel Type Brazed Seam Voltage Rating 600 Volt Overall Dimension 0.84 Inch Length x 0.28 Inch Width Material Electro Tin Plated Copper Insulation Diameter 0.17 Inch Wire Strip Length 7/32 Inch Flammability Rating UL 94V-0
Product Videos
Custom Field
Color Blue
Conductor Size 16-14 AWG
Finish Electro Tin Plated
Length 0.840 in.
Material Copper
RoHS Compliant yes
Style Standard
Type Funnel Entry
Width 0.280 in.
