Product Description

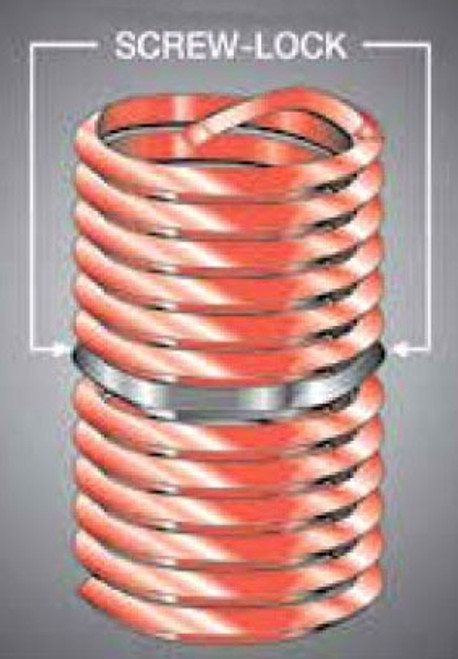

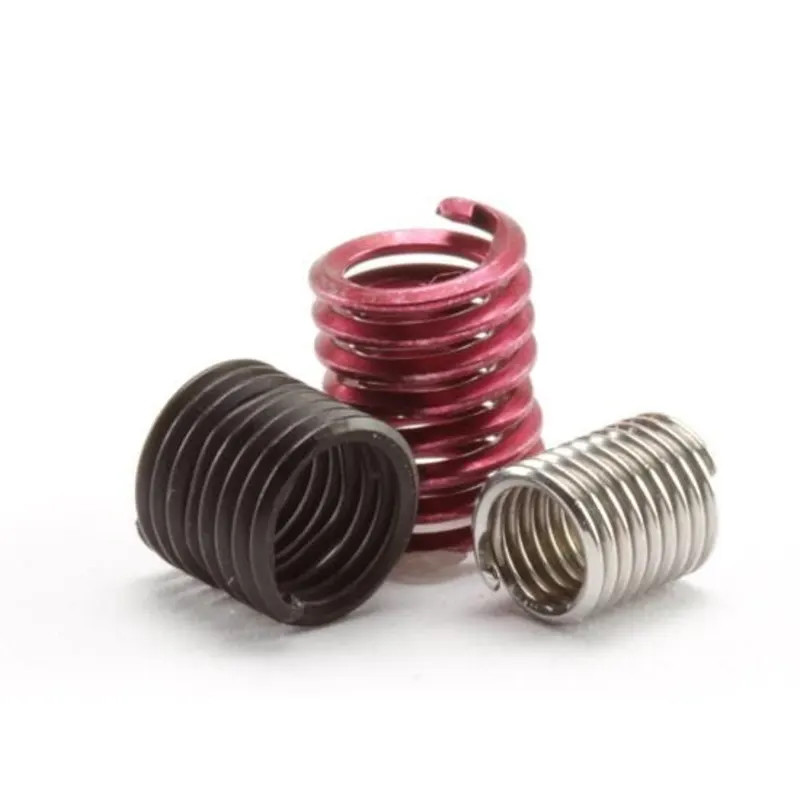

#8-32 TPI, 0.25 to 0.22" OD, 0.246" L, Matte Black, Primer Free II Coated, 304 Stainless Steel, 6-Coils, Diamond Knurled, Screw-Locking, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Screw-Locking Nominal Diameter #8 TPI 32 Thread Series UNC-2A External Thread Size 0.25 to 0.22 Inch Drill Size #16 Overall Length 0.246 Inch Material AS7245 304 Stainless Steel Finish Primer Free II Coated Tensile Strength 200000 to 250000 PSI Application Plastic RoHS Compliant Diameter 1.5 Number of Coils 6 Locking Torque 9 Inch-Pound Countersink 0.2 to 0.23 Inch Color Matte Black Applicable Standard NASM21209, NASM8846, NAS1130, ASME B18.29.1
Product Videos
Custom Field
Grip Range 1.5
Height Yes
Inner Diameter (I.D.) 0.25 to 0.22 in.
Length 0.246 in.
Material Primer Free II Coated
Pitch 0.25 to 0.22 in.
RoHS Compliant Matte Black
Thread #8-32 TPI
Type Diamond Knurled, Screw-Locking
