Product Description

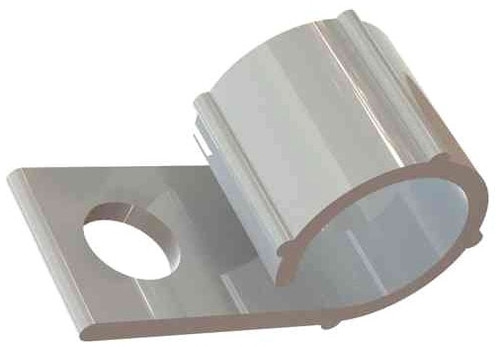

0.83" x 0.4", 0.375" Dia Bundle, Screw/Hole Mount, Natural, Nylon 6/6, Wire Harness Clip, Cable Clamp
Cable Clamp Type Wire Harness Clip Material Nylon 6/6 Color Natural Bundle Diameter 0.375 Inch Length 0.83 Inch Width 0.4 Inch Mounting #10, M5 Screw, 0.204 Inch Diameter Hole Standard Package 1000 Approval UL E71558, CSA RoHS Compliant Material Type RMS-01 Temperature Rating -40 to 185 Deg F Flammability Rating UL 94V-2
Product Specs
- SKU:
- WHC-375-01
- Color:
- Natural
- Diameter:
- .204 in (5.2 mm)
- Length:
- .830 in (21.1 mm)
- Material:
- Nylon 6/6
- RoHS Compliant:
- RoHS Compliant
- Thread:
- #10, M5
- Width:
- .400 in (10.2 mm)
