Product Description

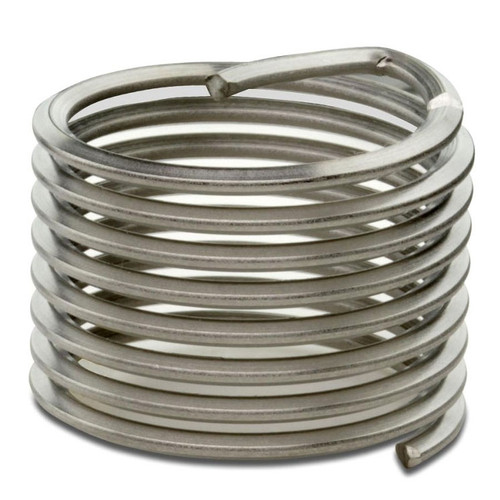

#6-40 TPI, 0.173 to 0.193" OD, 0.207" L, Nitronic 60, 6-Coils, Diamond Knurled, Screw-Locking, Tanged, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Screw-Locking, Tanged Nominal Diameter #6 TPI 40 Thread Series UNF-2A External Thread Size 0.173 to 0.193 Inch Drill Size #25 Overall Length 0.207 Inch Material UNS S21800 Nitronic 60 Tensile Strength 200000 PSI Application Plastic Diameter 1.5 Number of Coils 6 Locking Torque 6 Inch-Pound Countersink 0.17 to 0.2 Inch Applicable Standard NASM21209, NASM8846, NAS1130, ASME B18.29.1
Product Specs
- SKU:
- 3591-06EN207
- Grip Range:
- 1.5
- Inner Diameter (I.D.):
- 0.173 to 0.193 in.
- Length:
- 0.207 in.
- Pitch:
- 0.173 to 0.193 in.
- Thread:
- #6-40 TPI
- Type:
- Diamond Knurled, Screw-Locking, Tanged
