Product Description

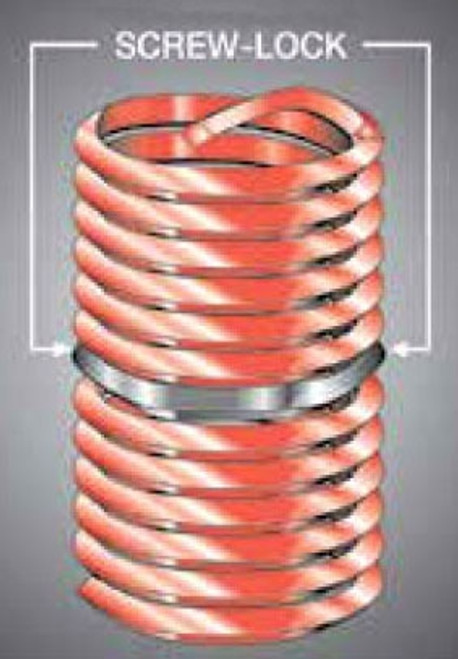

#10-32 TPI, 0.236 to 0.256" OD, 0.285" L, Phosphor Bronze, 6-7/8-Coils, Diamond Knurled, Screw-Locking, Tanged, Screw Threaded Insert 3591-3BNX0285
Screw Threaded Insert Type Diamond Knurled, Screw-Locking, Tanged Nominal Diameter #10 TPI 32 Thread Series UNF-2A External Thread Size 0.236 to 0.256 Inch Drill Size #16 Overall Length 0.285 Inch Material ASTM B159-01 and UNS C51000 Grade A Phosphor Bronze Tensile Strength 140000 PSI Application Plastic Diameter 1.5 Number of Coils 6-7/8 Locking Torque 13 Inch-Pound Countersink 0.23 to 0.26 Inch Applicable Standard NASM21209, NASM8846, NAS1130, ASME B18.29.1
Product Specs
- SKU:
- 3591-3BN285
- Grip Range:
- 1.5
- Inner Diameter (I.D.):
- 0.236 to 0.256 in.
- Length:
- 0.285 in.
- Pitch:
- 0.236 to 0.256 in.
- Thread:
- #10-32 TPI
- Type:
- Diamond Knurled, Screw-Locking, Tanged
