Product Description

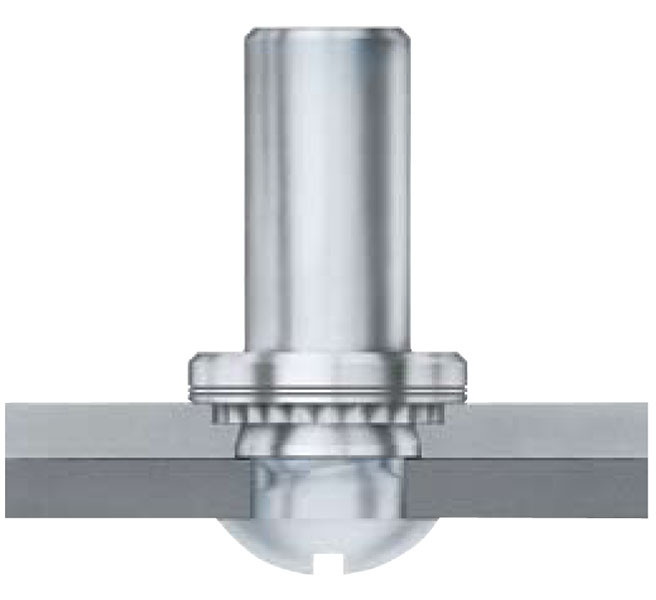

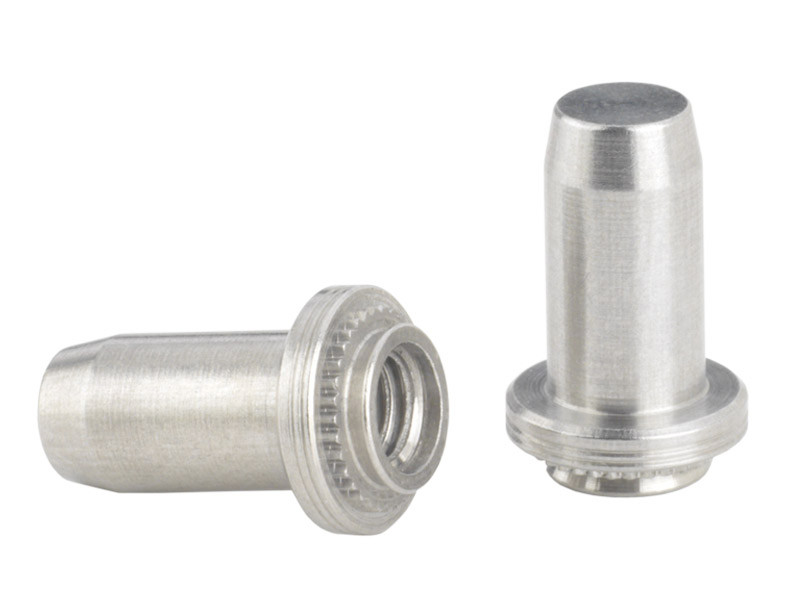

The B-M3-1ZI is a self-clinching blind nut designed to provide high-strength metric internal threads in thin metal sheets. The primary advantage of this fastener is its closed-end (blind) design, which creates a barrier against dirt, dust, and moisture while simultaneously preventing screw penetration. By containing the screw within the nut, it protects sensitive internal components from damage caused by over-long hardware. Its self-clinching profile ensures high pushout and torque-out resistance, and because it is installed into a bottomed-out hole, the reverse side of the host sheet remains completely flush and smooth.
Closed-End Design: Seals the assembly against environmental contaminants and protects internal parts from screw damage.
Flush Rear Surface: Ensures the back side of the metal panel is smooth and unobstructed for aesthetic or clearance requirements.
High Strength Threads: Provides superior load-bearing capabilities compared to standard tapped holes in thin materials.
Permanent Attachment: Becomes an integral part of the assembly once squeezed into place, eliminating the risk of loose or lost hardware.
Corrosion Protection: Carbon steel construction is finished with zinc plating for enhanced durability.
Product Specs
- SKU:
- B-M3-1ZI
- Part Number:
- B-M3-1ZI
- Thread Size:
- M3 x 0.5
- Thread Specification:
- 6H, ASME B1.13M
- Shank Code:
- 1
- Minimum Sheet Thickness:
- 1 mm
- Fastener Material:
- Carbon Steel
- Finish:
- Zinc plated per ASTM B633, Class FE/ZN 5, Type III, colorless
- Sheet Hardness Compatibility:
- HRB 80 / HB 150 or Less
- Hole Size in Sheet:
- 5.41 mm
- Minimum Distance to Edge:
- 6.9 mm
- Maximum Shank Length (A):
- 0.97 mm
