Product Description

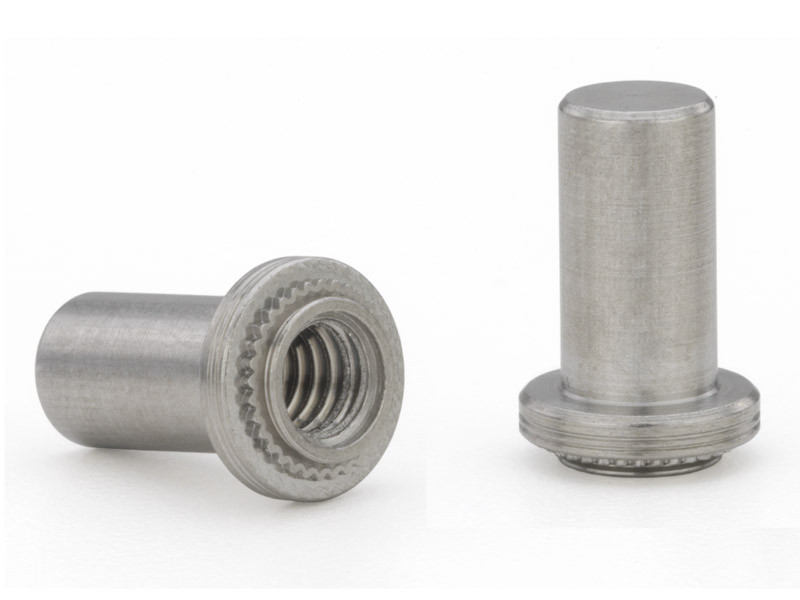

Self-Clinching Blind Fasteners - Types B, BS - Unified

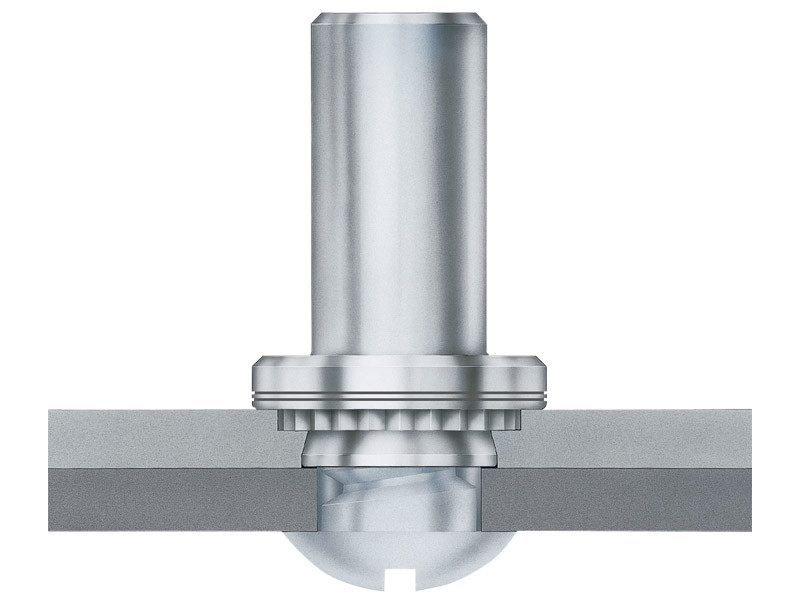

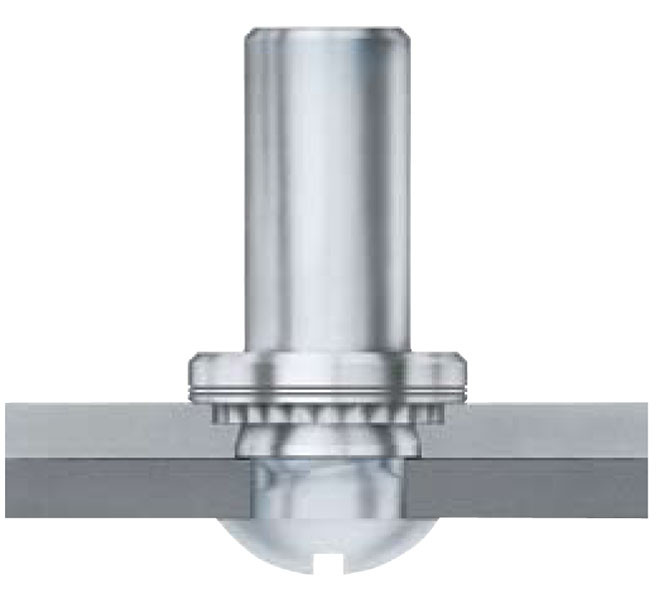

PEM ® brand self-clinching blind fasteners provide permanently mounted blind threads in metal sheets as thin as .040”. Provides barrier to protect threads against foreign matter. Protects internal components from intrusion of screws. PEM blind fasteners employ the proven PEM self-clinching design and are easily installed in properly sized holes. Shanks of PEM fasteners act as their own pilots. PEM blind fasteners can be installed with any standard press applying squeezing forces between parallel surfaces. PEM self-clinching blind fasteners are available in thread sizes from #4-40 through 1/4-20 in carbon or stainless steel.
Product Videos
Custom Field
Finish Passivated and/or tested per ASTM A380
Hole Size .166 in.
Material 300 SERIES STAINLESS STEEL
Panel Thickness .056 Min.
Thread .112-40 (#4-40)
