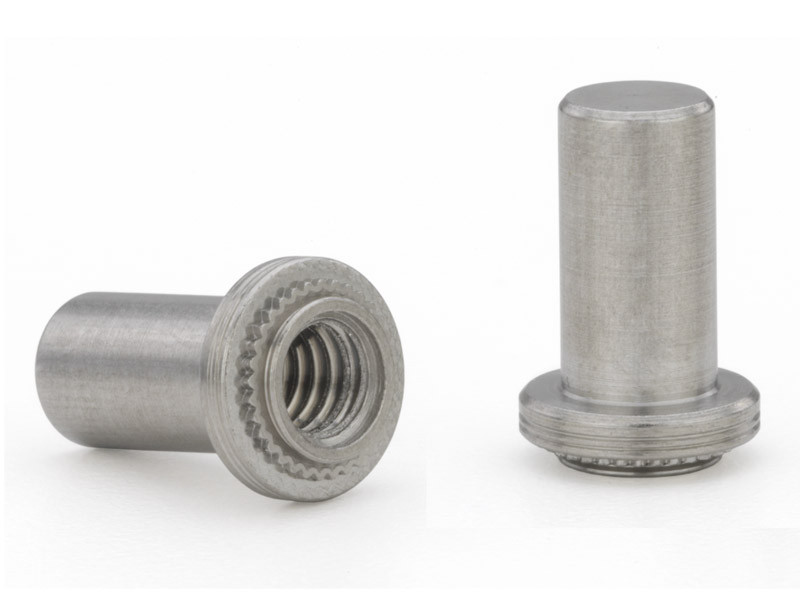

BS-440-1 - Self-Clinching Blind Nut by PennEngineering ® (PEM ® )

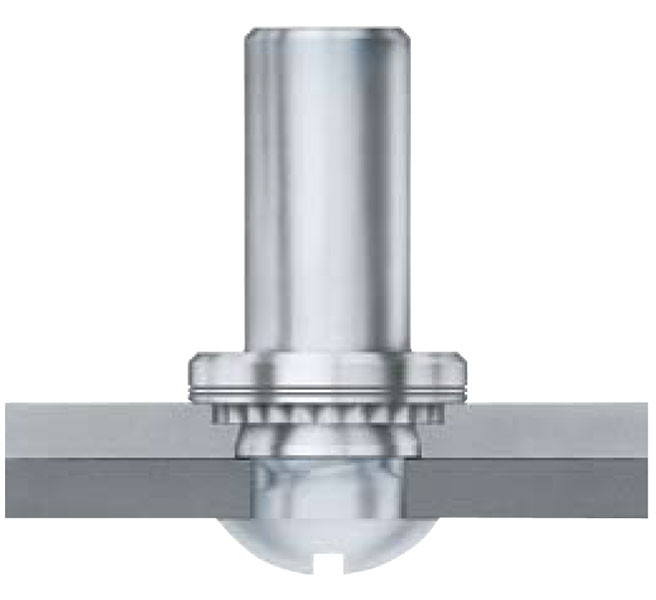

The BS-440-1 is a stainless steel self-clinching blind nut engineered to provide high-strength internal threads in thin metal sheets. This fastener features a closed-end (blind) design, which acts as a protective barrier against dirt, dust, and moisture while simultaneously preventing screw penetration. By containing the screw within the nut, it protects sensitive internal components from damage caused by over-long hardware. Its self-clinching profile ensures high pushout and torque-out resistance, and because it is installed into a bottomed-out hole, the reverse side of the host sheet remains

Closed-End Design: Seals the assembly against environmental contaminants and protects internal parts from screw damage.

Flush Rear Surface: Ensures the back side of the metal panel is smooth and unobstructed for aesthetic or clearance requirements.

Permanent Attachment: Becomes an integral part of the assembly once squeezed into place, eliminating the risk of loose or lost hardware.

Corrosion Resistance: 300 Series Stainless Steel construction provides enhanced durability in demanding or corrosive environments.

High Performance: Offers superior load-bearing capabilities in thin materials where standard tapped threads would be insufficient.
