Product Description

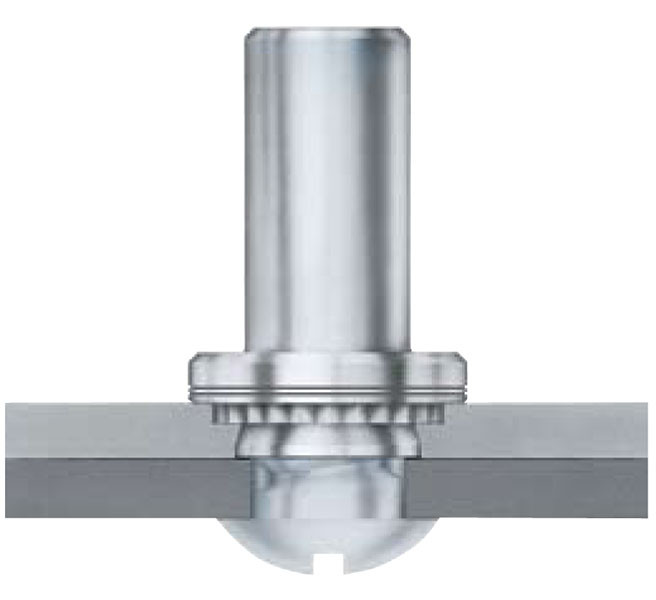

The BS-M6-1 is a stainless steel self-clinching blind nut designed to provide high-strength metric internal threads in thin metal sheets. This fastener features a closed-end (blind) design, which acts as a protective barrier against dirt, dust, and moisture while simultaneously preventing screw penetration. By containing the screw within the nut, it protects sensitive internal components from damage caused by hardware extending too far. Its self-clinching profile ensures high pushout and torque-out resistance, and because it is installed into a bottomed-out hole, the reverse side of the host sheet remains completely flush and smooth.
Environmental Protection: The closed-end design seals the assembly against contaminants and prevents external leakage.
Component Safety: Limits the depth of screw travel, protecting internal circuitry or fragile parts from mechanical damage.
Corrosion Resistance: 300 Series Stainless Steel construction provides enhanced durability in demanding or corrosive environments.
Flush Rear Surface: Ensures the back side of the metal panel remains unobstructed and aesthetically clean.
Shank Code 1: Optimized for installation into thin metal sheets with a minimum thickness of 1.27 mm.
Product Specs
- SKU:
- BS-M6-1
- Part Number:
- BS-M6-1
- Thread Size:
- M6 x 1
- Thread Specification:
- 6H, ASME B1.13M
- Shank Code:
- 1
- Minimum Sheet Thickness:
- 1.27 mm
- Fastener Material:
- 300 Series Stainless Steel
- Finish:
- Passivated per ASTM A380
- Sheet Hardness Compatibility:
- HRB 70 / HB 125 or Less
- Hole Size in Sheet:
- 11.13 mm
- Minimum Distance to Edge:
- 11.4 mm
- Maximum Shank Length (A):
- 1.22 mm Meta Description
