Product Description

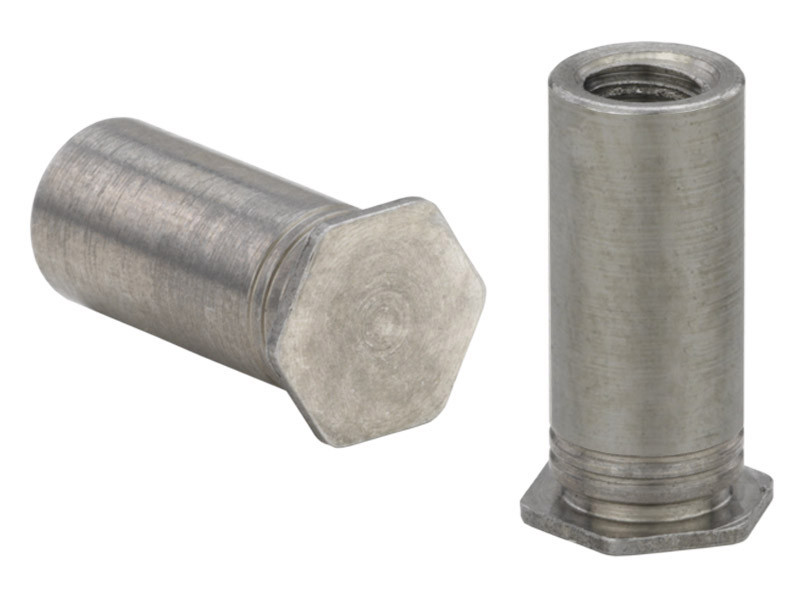

The PEM® BSOS-3.5M3-20 is a rugged, high-reliability blind threaded standoff designed for establishing secure structural offsets in thin-sheet chassis. Utilizing an advanced self-clinching design, the fastener is pressed into a round hole with a steady squeezing force, becoming a permanent part of the host panel with high torque-out and pushout resistance. Its blind-threaded configuration means the outer side of the panel remains completely flush and unmarred, which protects internal threads from environmental contaminants and seals the mounting point. Fabricated from high-grade 300 Series Stainless Steel, it delivers excellent corrosion protection, making it ideal for medical electronics, server enclosures, and demanding automotive instrumentation applications.
Self-Clinching Integration: Installs permanently into thin sheets without the heat of welding, saving assembly time and preventing metal distortion.
Blind (Closed-End) Threading: Ensures the reverse side of the host metal sheet remains perfectly flat and sealed against dust, air, and liquid ingress.
Corrosion-Resistant Material: Built from robust 300 Series Stainless Steel, providing reliable service life in harsh or damp conditions.
Generous Stacking Profile: Provides a precise 20 mm clearance gap, giving extra vertical space for stacked PCBs or dense internal hardware layouts.
Product Specs
- SKU:
- BSOS-3.5M3-20
- Part Number:
- BSOS-3.5M3-20
- Brand:
- PEM® (PennEngineering®)
- Product Category:
- Blind Threaded Standoffs – Types BSO, BSOA, BSOS – Metric
- Thread Size x Pitch:
- M3 x 0.5
- Thread Code:
- 3.5M3
- Length Code:
- 20
- Length (L):
- 20 mm (+0.05 mm / -0.13 mm)
- Material Code:
- S
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or Tested Per ASTM A380
- Thread Specification:
- Internal, ANSI/ASME B1.13M, 6H
- Minimum Sheet Thickness:
- 1.00 mm
- Hole Size in Sheet (+0.08 mm):
- 5.41 mm

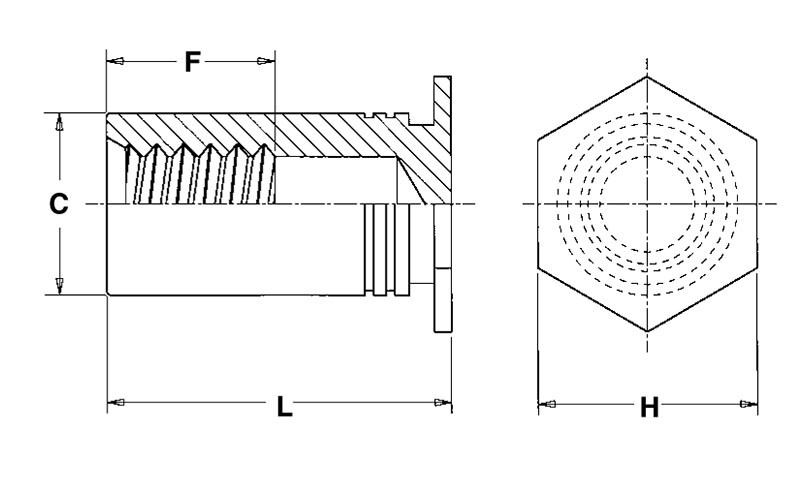

- C (-0.13 mm):
- 5.39 mm
- F Min. (Thread Depth):
- 9.50 mm
- H Nom. (Hex Size):
- 6.4 mm
- Minimum Distance from Hole C/L to Edge:
- 6.80 mm
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
