Product Description

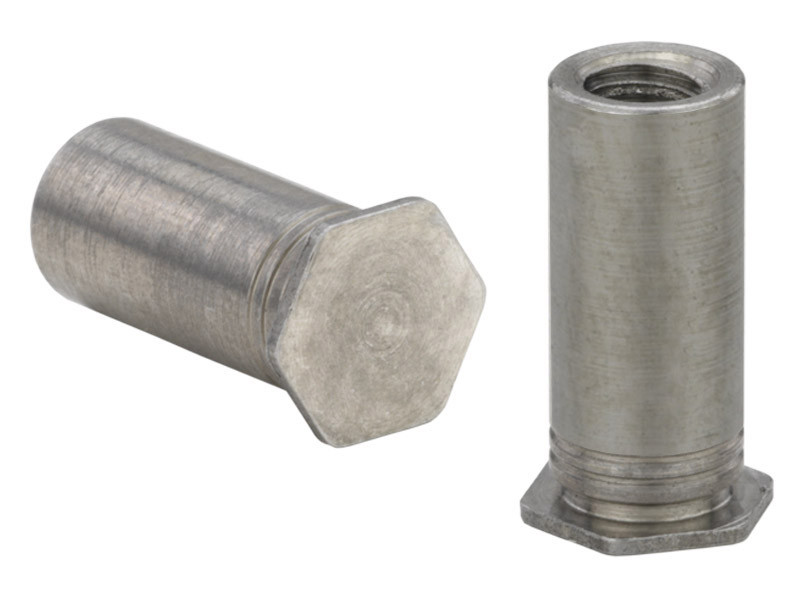

The PEM® BSOS-M3-14 is a high-performance self-clinching blind threaded standoff manufactured exclusively by PennEngineering® to establish strong, permanent internal threads in thin metal sheets. These metric fasteners install with a squeeze into properly sized round holes, using a self-clinching design that displaces host material to become permanently mounted in the sheet. When these blind-threaded standoffs are used, the outer sheet surfaces remain completely flush and closed. This ensures a smooth, unmarred exterior profile while creating an unbreached physical barrier that isolates internal components and the thread cavity from external dust, debris, and contaminants.
Blind-Threaded Engineering: Keeps the outer sheet surfaces completely flush and closed, safeguarding sensitive interior components from environmental debris.
Self-Clinching Design: Installs permanently into thin metal sheets via a simple squeezing action, completely eliminating the risks associated with loose hardware.
No Welding Necessary: Provides high-strength, robust attachment points without the thermal distortion, panel warping, or surface blemishes caused by welding.
Corrosion-Resistant Composition: Manufactured from 300 Series stainless steel to deliver reliable, long-lasting mechanical performance in demanding application environments.
Product Specs
- SKU:
- BSOS-M3-14
- Part Number:
- BSOS-M3-14
- Product Category:
- Blind Threaded Standoffs – Types BSO, BSOA, BSOS – Metric
- Thread Size x Pitch:
- M3 x 0.5
- Thread Code:
- M3
- Length Code:
- 14
- Length (Nominal L):
- 14 mm

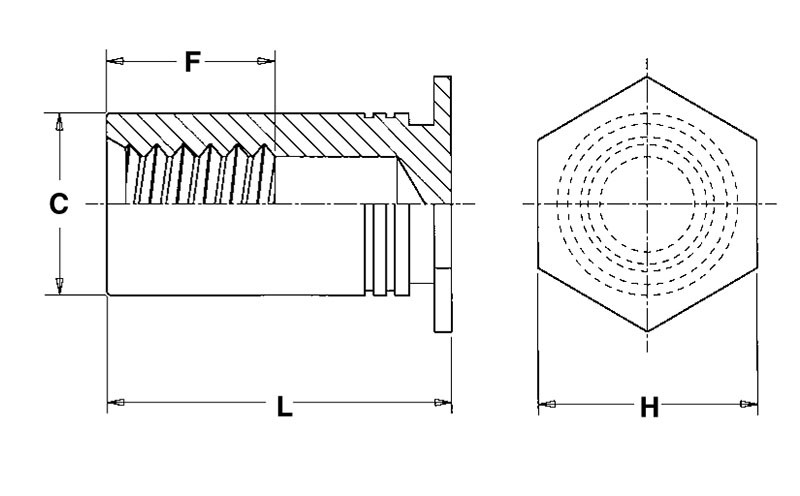

- Dimension C (+0 -0.13):
- 5.39 mm
- Dimension F (Minimum Thread Depth):
- 6.4 mm
- Dimension H (Nominal Hex Size):
- 6.4 mm
- Minimum Sheet Thickness:
- 1.00 mm
- Hole Size in Sheet (+0.08):
- 5.41 mm
- Minimum Distance from Hole Centerline to Edge:
- 6.4 mm
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
- Thread Specification:
- Internal, ANSI/ASME B1.13M, 6H
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or Tested Per ASTM A380
