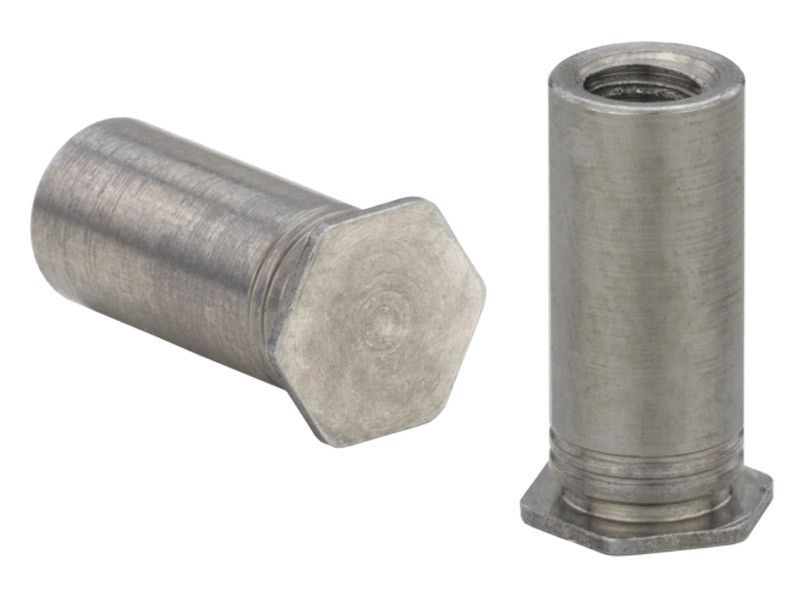

BSOS-M4-25 - Blind Threaded Standoffs by PennEngineering ® (PEM ® )

The PEM® BSOS-M4-25 is an extra-long metric self-clinching blind threaded standoff precision-engineered by PennEngineering® to yield rugged, heavy-duty internal threads in thin sheet metal. These fasteners deploy via a steady, parallel pressing force into properly sized round holes, triggering a mechanical self-clinching movement that forces panel material into the undercut to become a permanently mounted structural component of the chassis. Thanks to its specialized blind-threaded engineering, the back side of the host sheet remains completely flush and closed after installation. This allows engineers to preserve a sleek, unmarred panel exterior while forming an unbreached physical barrier that isolates delicate internal electronic components and the thread cavity from external moisture, dust, and environmental contaminants.

Blind-Threaded Configuration: Features a closed bottom barrel that keeps the reverse side of the host sheet clean, smooth, and completely sealed against environmental ingress.

Permanent Self-Clinching Fit: Displaces host panel material into the fastener's undercut during installation, delivering high pushout and torque-out resistance without loosening over time.

Flush External Surface: Ensures the outer face of the panel remains entirely flat and unmarred for a premium, streamlined exterior profile.

Corrosion-Resistant Composition: Fabricated from 300 Series stainless steel to provide long-lasting mechanical performance in sensitive or demanding deployment environments.

Alternative to Panel Welding: Eliminates the need for specialized welding equipment, thermal distortion risks, and secondary grinding operations on thin metal sheets.
