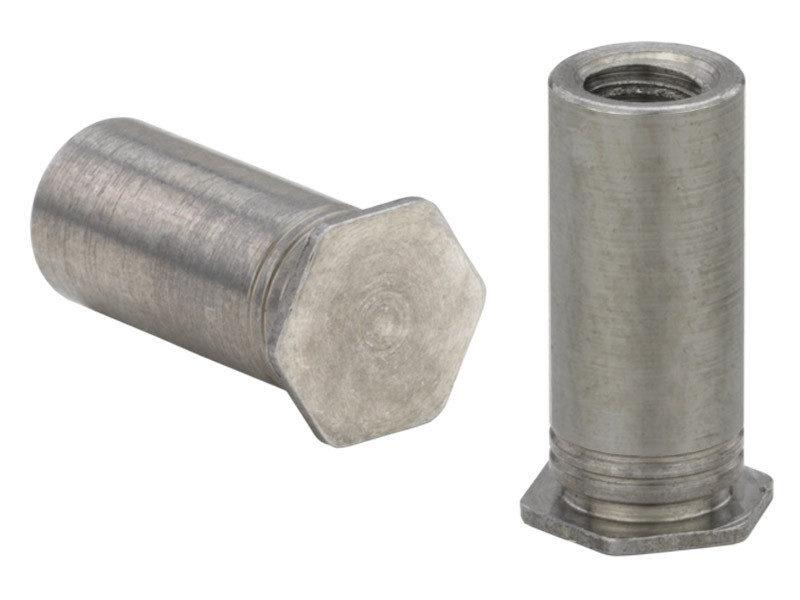

BSOS-M5-12 - Blind Threaded Standoffs by PennEngineering ® (PEM ® )

The PEM® BSOS-M5-12 is a robust metric self-clinching blind threaded standoff precision-engineered by PennEngineering® to establish heavy-duty, load-bearing internal threads in thin sheet metal. These parts press smoothly into properly sized round holes using a steady parallel squeezing force, initiating a mechanical self-clinching movement that forces panel material to cold-flow into the undercut to become a permanently mounted structural component of the chassis. Thanks to its specialized blind-threaded engineering, the exterior sheet surface remains completely flush and closed post-installation. This enables design engineers to maintain a pristine, unmarred panel exterior while providing an unbreached physical barrier that isolates delicate internal electronic components and the thread cavity from external moisture, dust, and debris.

Blind-Threaded Configuration: Features a closed bottom barrel that keeps the reverse side of the host sheet clean, smooth, and completely sealed against environmental ingress.

Permanent Self-Clinching Fit: Displaces host panel material into the fastener's undercut during installation, delivering high pushout and torque-out resistance without loosening over time.

Flush External Surface: Ensures the outer face of the panel remains entirely flat and unmarred for a premium aesthetic and streamlined appearance.

Corrosion-Resistant Composition: Fabricated from 300 Series stainless steel to provide long-lasting, reliable mechanical performance in sensitive or demanding electronic environments.

Alternative to Panel Welding: Eliminates the need for specialized welding equipment, thermal distortion risks, and secondary grinding operations on thin host panels.
