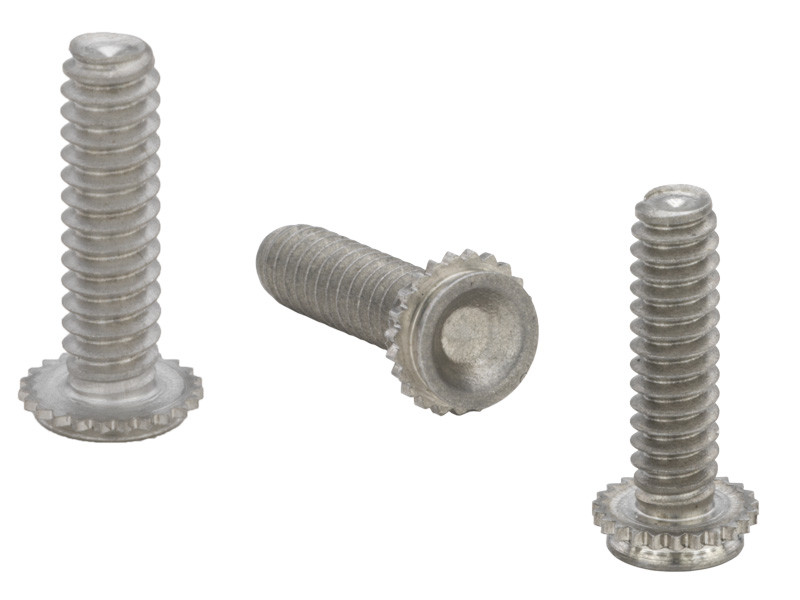

CFHA-440-6 - Concealed-Head Stud by PennEngineering ® (PEM ® )

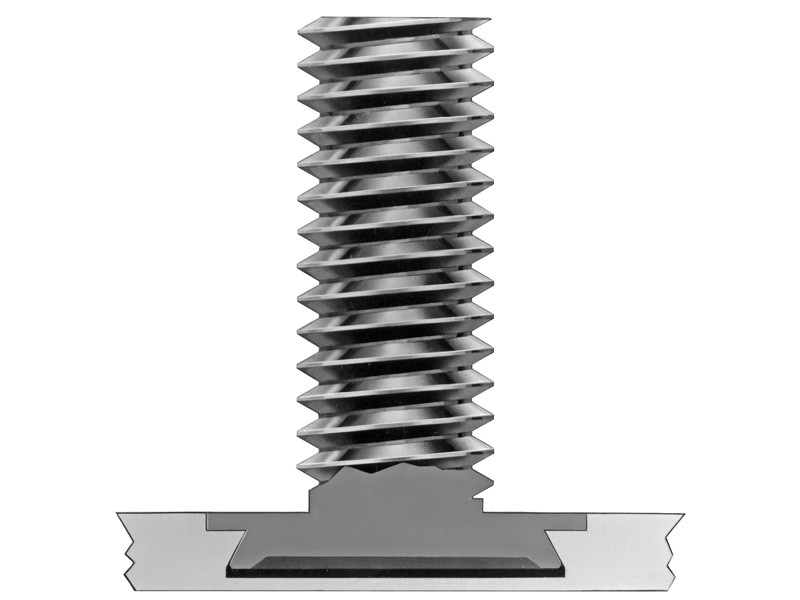

These concealed-head studs are engineered to provide permanent mounting within thin metal sheets by locking the fastener head securely inside a blind, milled hole. Once installed using a standard press, the displaced sheet metal flows smoothly around the head and into the undercut, allowing the fastener to handle substantial loads. The key advantage of this concealed-head feature is that the side of the sheet opposite the installation remains completely smooth and uninterrupted, preserving a clean exterior appearance.

Concealed-Head Design: Installs into a blind, milled hole so that the opposite side of the sheet metal remains completely smooth, unblemished, and flush.

Permanent Mounting: Self-clinching action locks the fastener securely into place, creating a high-strength permanent stud that will not loosen.

Substantial Load Capacity: Engineered to reliably handle high-stress applications and significant structural loads.

Simple Installation: Easily pressed into place using a standard punch and hollow anvil, forcing displaced sheet metal smoothly into the fastener's undercut.
