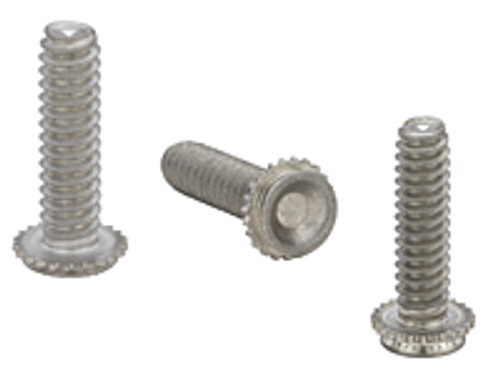

CFHC-M3-10 - Concealed-Head Stud by PennEngineering ® (PEM ® )

These self-clinching studs ensure permanent mounting in metal sheets, allowing the side of the sheet opposite the installation to remain smooth and unmarred. The fastener head is locked securely in a blind, milled hole and is engineered to handle substantial loads. This concealed-head installation profile satisfies strict ingress protection (IP) requirements, as the sheet remains completely sealed from air, liquid, dust, gases, or other potentially infiltrating elements. During installation into a recommended blind hole, displaced sheet metal flows smoothly around the head into the undercut for a high-strength fit.

Concealed-Head Design: Leaves the reverse side of the metal panel completely smooth, unmarred, and flush.

Environmental Sealing: Ideal for applications requiring strict ingress protection (IP) against dust, air, liquids, and gases by keeping the sheet completely sealed.

High Load Capacity: The securely locked fastener head is capable of supporting substantial pullout and torque loads.

Permanent Self-Clinching Installation: Installed quickly using a standard press with a hollow anvil and solid punch, preventing hardware loosening over time.

Corrosion Resistance: Manufactured from 300 Series Stainless Steel and passivated for lasting durability.
