Product Description

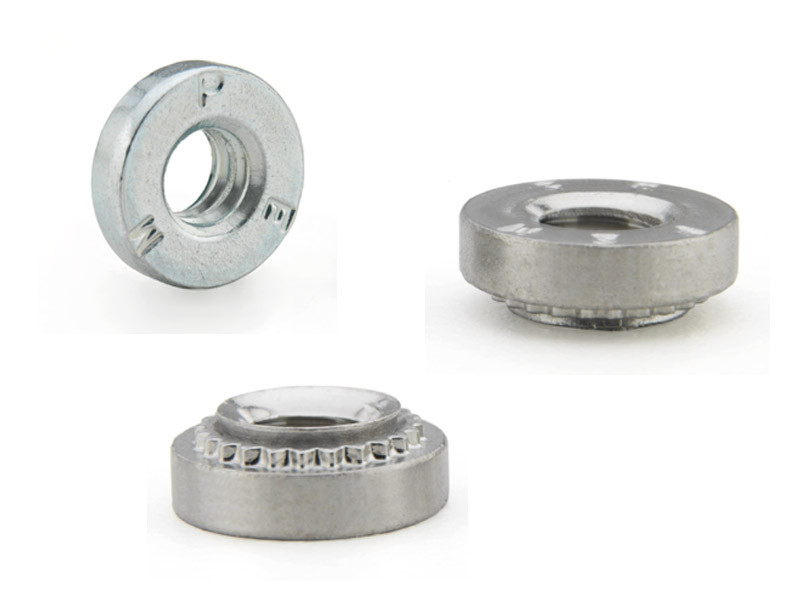

The PennEngineering® (PEM®) CLS-M3-1 is a high-precision self-clinching nut engineered to provide permanent, load-bearing threads in thin sheet metal panels. Fabricated from premium 300 Series Stainless Steel, this robust fastener offers outstanding corrosion resistance and non-magnetic performance, making it highly reliable for compact consumer electronics, automotive electronics, and datacom systems. When installed into a properly sized metric hole via a parallel squeezing force, the parent sheet metal cold flows directly into the nut's special undercut, anchoring the hardware tightly into place as an integral part of the sheet. A specialized serrated clinching ring locks completely into the panel, providing superior pushout and torque-out resistance to prevent rotation or loose hardware during final product service.
High Pushout and Torque-Out Resistance Delivers exceptional structural joint integrity, remaining permanently locked under high torque and axial loads.
Serrated Clinching Ring Securely grips the host panel material upon press-in installation to completely stop fastener spinning and rotation.
300 Series Stainless Steel Material Offers excellent protection against rust and corrosion, making it perfect for non-magnetic, sensitive, or cleanroom environments.

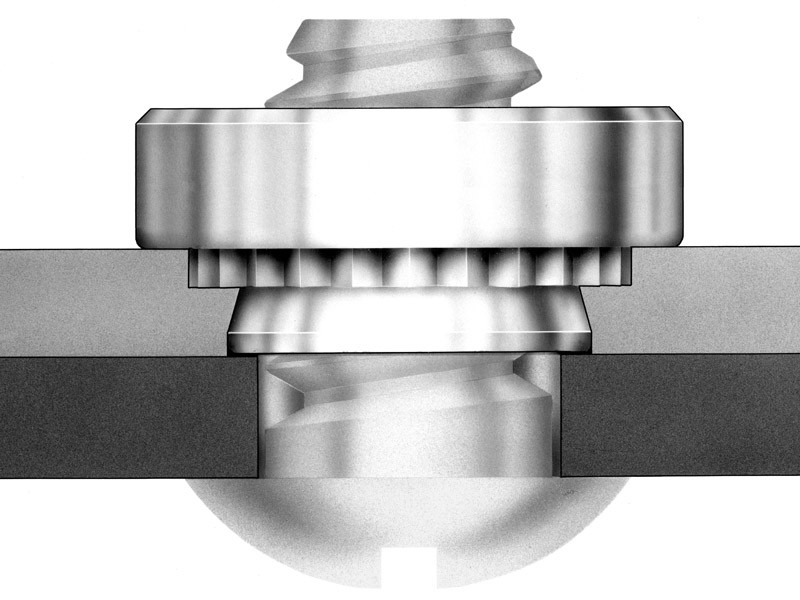

Undercut Panel Interlock Captures displaced host metal cleanly via standard parallel squeezing force to provide a secure, flush mechanical fit without welding or warping.
Product Specs
- SKU:
- CLS-M3-1
- Part Number:
- CLS-M3-1
- Thread Size:
- M3 x 0.5
- Thread Specification:
- Internal, ASME B1.13M, 6H
- Thread Type:
- Metric
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or Tested Per ASTM A380
- Minimum Sheet Thickness:
- 1.00 mm
- Hole Size in Sheet:
- 4.22 mm
- Minimum Distance Hole Centerline to Edge:
- 4.8 mm
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
