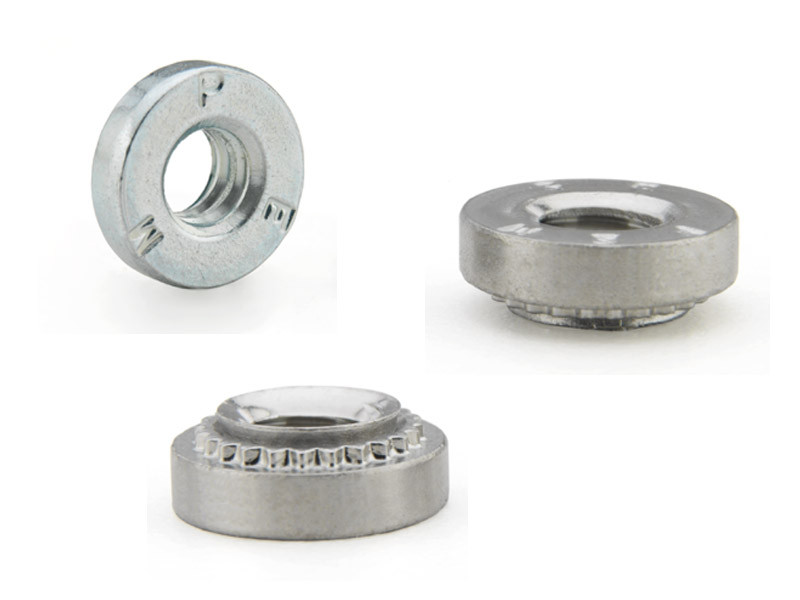

CLSS-024-3 - Self-Clinching Nut by PennEngineering ® (PEM ® )

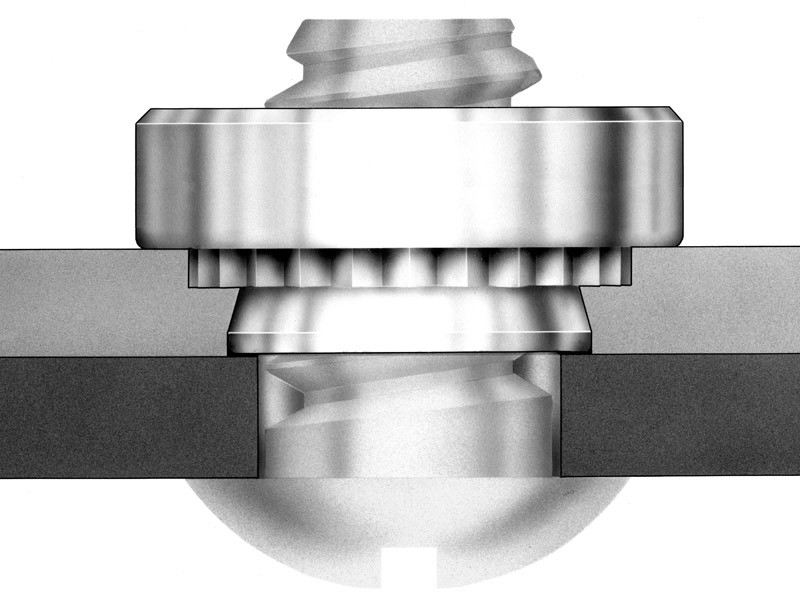

The PEM® CLSS-024-3 is a high-strength self-clinching nut meticulously engineered to provide permanent, reliable load-bearing threads in thin sheet metal enclosures. Formed from premium 300 Series Stainless Steel, this unified-threaded fastener delivers exceptional corrosion protection, making it perfect for aerospace electronics, medical devices, and high-end automotive assemblies. When integrated with standard parallel pressing equipment, the host sheet material cold-flows into the nut's precision undercut, creating an integrated joint with severe pushout and torque-out resistancewhile avoiding the thermal stresses, distortion, and extra labor costs associated with traditional welding.

High Pushout and Torque-Out Resistance integrates directly into sheet metal panels to securely withstand high levels of rotational torque and heavy axial pullout forces.

300 Series Stainless Steel Construction provides optimal material hardness combined with robust, long-lasting defense against localized environmental corrosion.

Passivated Quality Finish satisfies demanding manufacturing and engineering cleaning criteria to optimize overall component longevity.

Efficient Squeeze-In Installation accelerates output times on the assembly floor by utilizing simple parallel forces rather than manual tapping or welding processes.
