Product Description

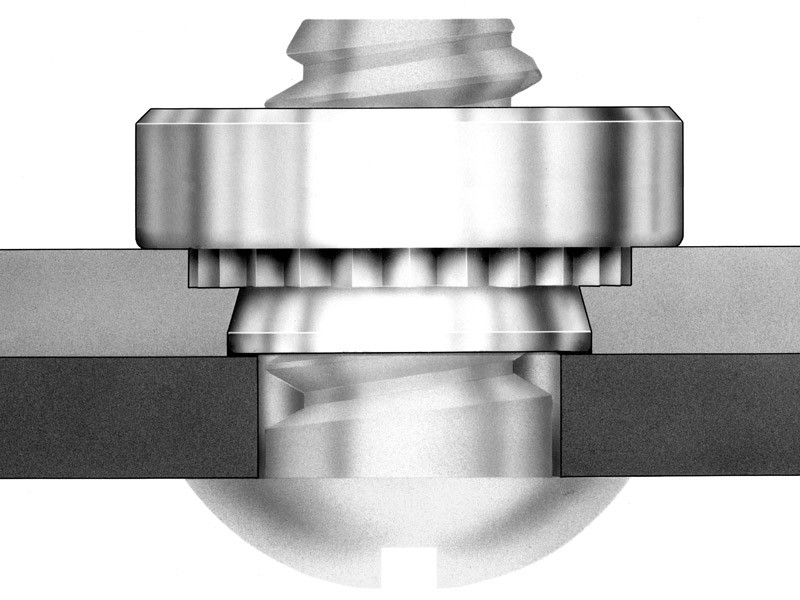

The CLSS-032-2 is a stainless steel threaded insert designed for installation into functional metallic sheets. It utilizes a "squeeze" installation method: when pressed into a properly sized round hole, the fastener's clinching ring displaces the host material into an annular groove, locking the nut securely in place.
Permanent Threading: Becomes an integral part of the assembly, preventing loose hardware during field service or maintenance.
Corrosion Resistance: 300 Series stainless steel construction makes it suitable for medical, electronics, and food service environments.
High Performance: The knurled clinching ring provides superior torque-out and pushout resistance compared to traditional sheet metal fasteners.
Clean Installation: Does not require welding, tapping, or secondary cleaning operations.
Product Specs
- SKU:
- CLSS-032-2
- Manufacturer:
- PennEngineering® (PEM®)
- Part Number:
- CLSS-032-2
- Thread Size:
- #10-32 (.190-32)
- Thread Type:
- Unified (UNF), Internal, 2B per ASME B1.1
- Material:
- 300 Series Stainless Steel
- Finish:
- Passivated (per ASTM A380)
- Material Code:
- SS
- Shank Code:
- 2
