Product Description

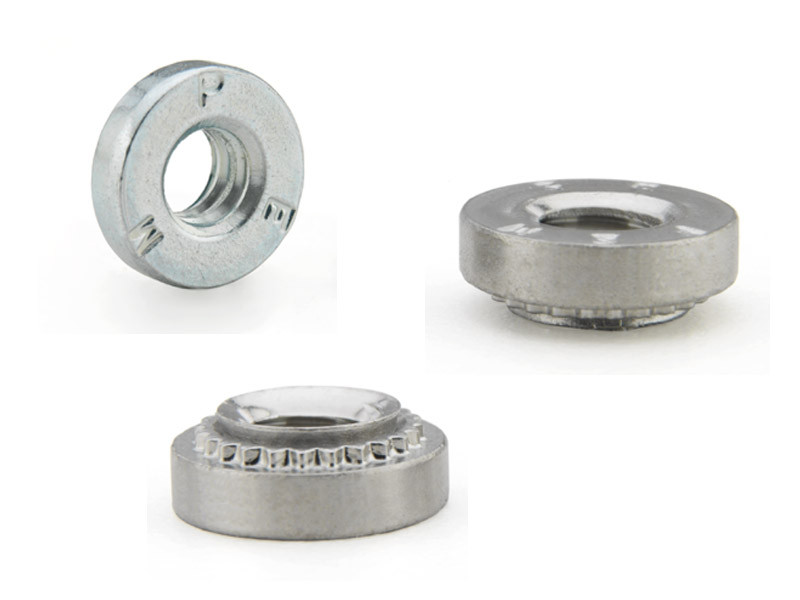

The CLSS-M5-2 is a stainless steel threaded insert that utilizes a self-clinching design to become an integral part of the host chassis or panel. When pressed into a properly sized round hole, the fastener’s clinching ring displaces host material into the annular groove, ensuring high torque-out and pushout resistance.
Because it is made from 300 Series stainless steel, it offers excellent corrosion resistance and is ideal for use in aluminum or cold-rolled steel panels. The "2" shank code indicates it is optimized for specific sheet thickness ranges to ensure a flush finish on the reverse side.
High Torque Resistance: The knurled clinching ring ensures the nut will not rotate under high tightening torques.
Corrosion Resistance: 300 Series stainless steel construction makes it suitable for medical, food service, and outdoor electronics.
Compact Footprint: Provides a low-profile solution for dense electronic assemblies.
Simple Installation: Does not require specialized welding or high-heat processes that could warp thin panels.
Product Specs
- SKU:
- CLSS-M5-2
- Manufacturer:
- PennEngineering® (PEM®)
- Part Number:
- CLSS-M5-2
- Thread Size:
- M5 x 0.8
- Thread Type:
- Metric, Internal (6H ISO)
- Material:
- 300 Series Stainless Steel
- Finish:
- Passivated (per ASTM A380)
- Material Code:
- SS
- Shank Code:
- 2
