Product Description

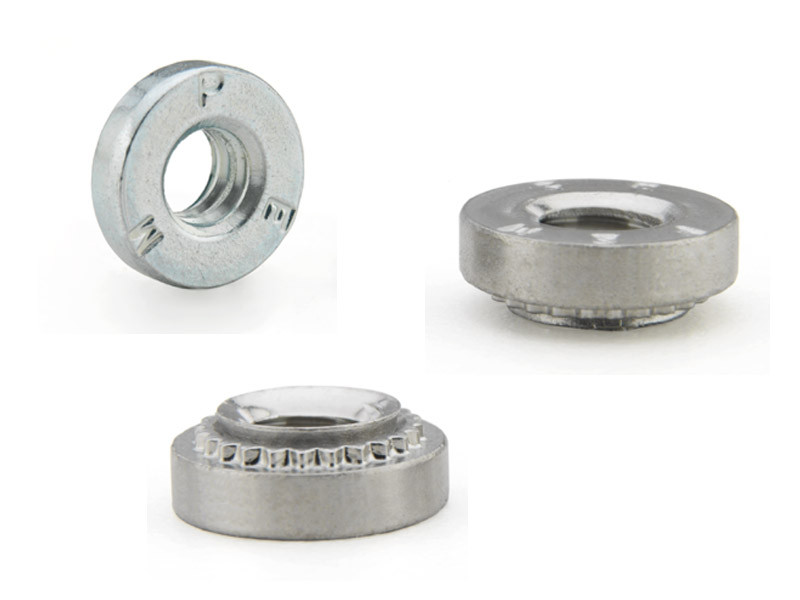

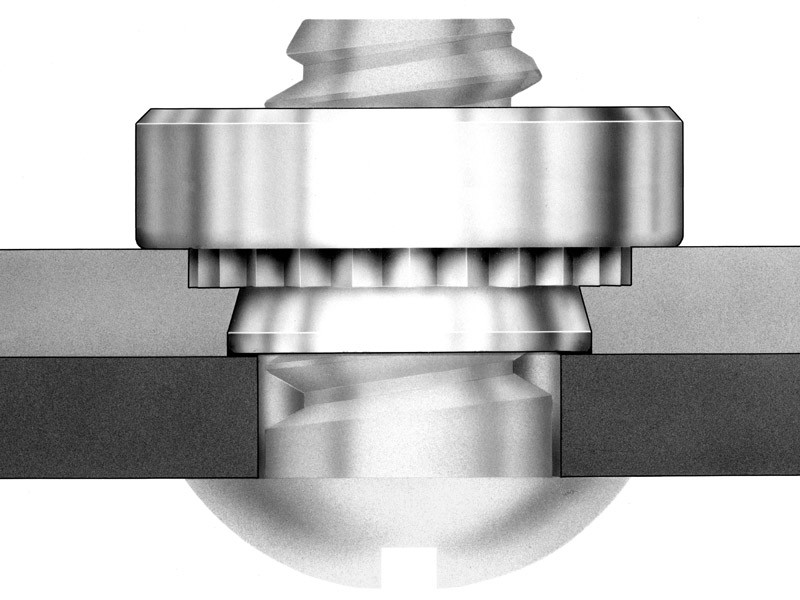

The PEM® CLSS-M5-0 is a high-performance self-clinching nut systematically engineered to provide permanent,reliable load-bearing threads in ultra-thin sheet metal fabrications. Formed from premium 300 Series Stainless Steel,this metric hardware solution provides superb corrosion protection, making it ideal for medical equipment, consumer electronics, and industrial metal enclosures. When integrated using a standard parallel pressing process, the host panel material cold-flows flawlessly into the nut's specialized undercut, creating an integrated assembly with elite pushout and torque-out resistance while avoiding the thermal stresses, sheet warping, and labor costs of traditional welding.
Elite Pushout and Torque-Out Resistance integrates directly into sheet metal panels to securely withstand high levels of rotational torque and heavy axial pullout forces.
300 Series Stainless Steel Composition offers heavy-duty structural strength paired with reliable, long-lasting defense against localized environmental corrosion.
Passivated Quality Finishsatisfies demanding engineering and manufacturing cleaning criteria to optimize overall surface cleanliness.
Low-Profile Shank Performance utilizes a precision shank length that enables secure, permanent clinching in ultra-thin sheets down to a minimum thickness of 0.8 mm.

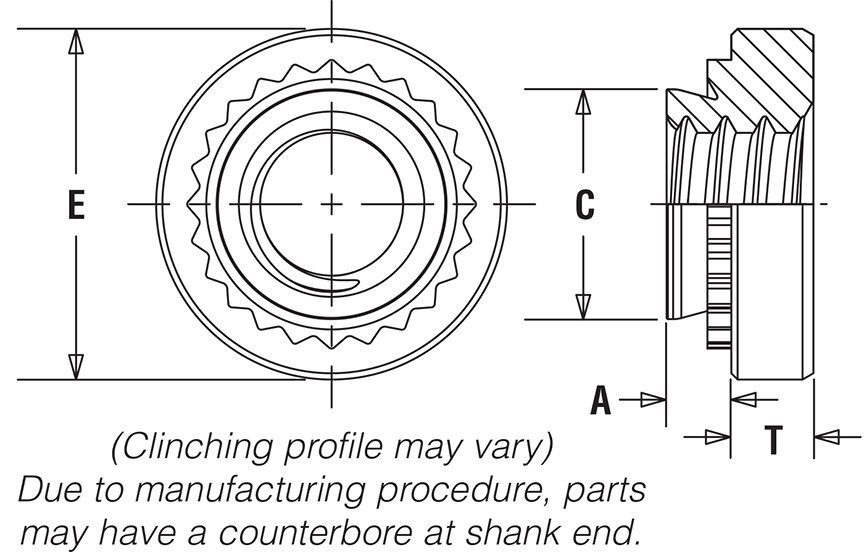

Product Specs
- SKU:
- CLSS-M5-0
- Part Number:
- CLSS-M5-0
- Thread Size:
- M5 x 0.8
- Thread Specification:
- Internal, ASME B1.13M, 6H
- Thread Type:
- Metric
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated
- Minimum Sheet Thickness:
- 0.8 mm
- Hole Size in Sheet:
- 6.35 mm
- Minimum Distance Hole Centerline to Edge:
- 7.10 mm
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
