Product Description

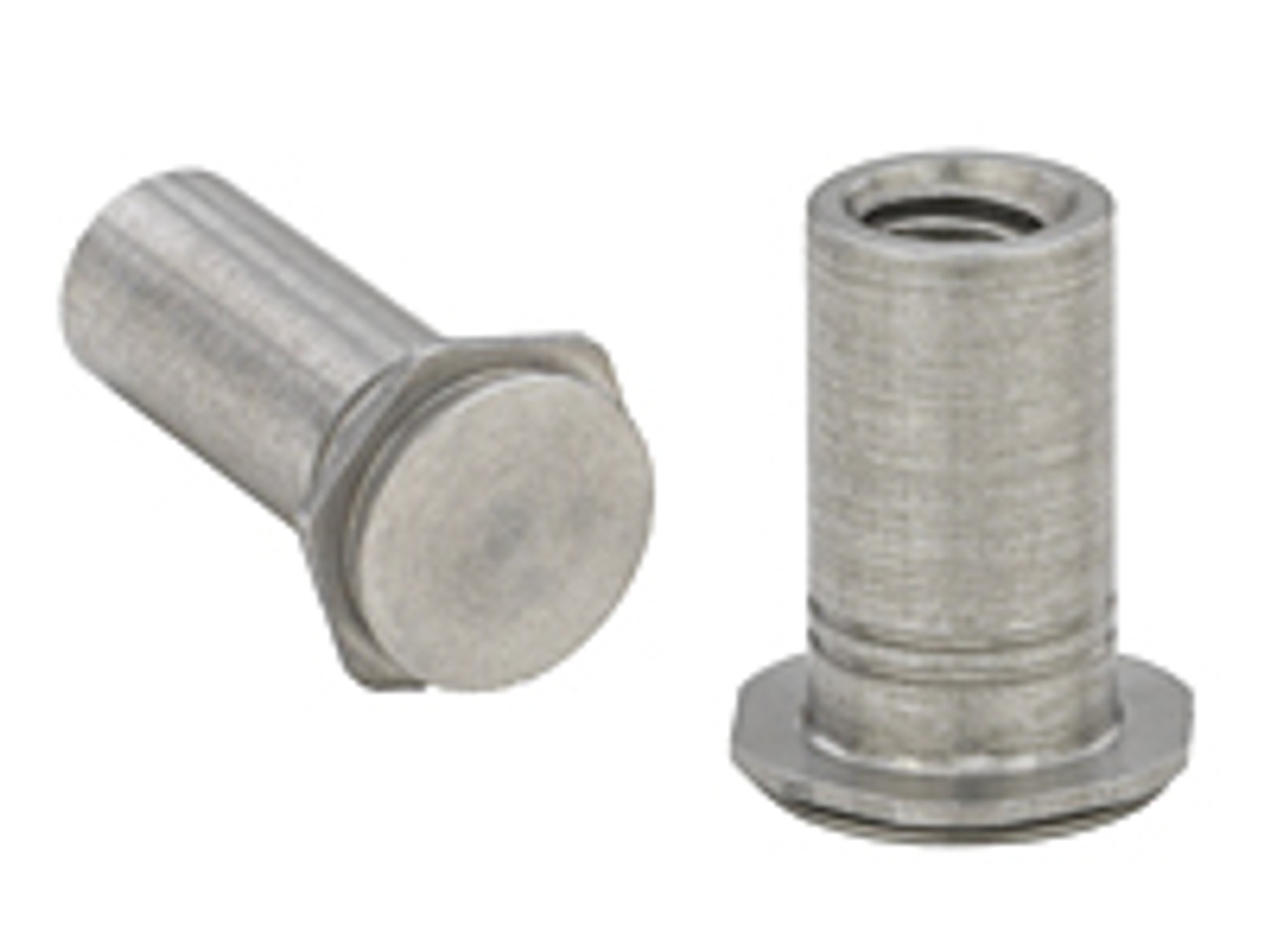

The PEM® CSOS-0420-16 is a high-performance, concealed-head self-clinching standoff designed to ensure permanent mounting and provide strong, reusable threads in metal sheet fabrications. Formed from durable 300 Series Stainless Steel, this unified-threaded standoff features a specialized head that locks securely into a blind, milled hole. Because it is integrated into a blind hole, the concealed-head feature allows the exterior side of the sheet opposite the installation to remain completely smooth and unmarred. This creates a clean look while easily handling substantial axial and rotational loads in high-end electronic enclosures and industrial assemblies.
Concealed-Head Design installs into a blind, milled hole to allow the side of the host sheet opposite the installation to remain completely smooth and unmarred.
Environmental Protection Performance satisfies strict ingress protection (IP) requirements by leaving the exterior sheet completely sealed against air, liquid, dust, and gases.
300 Series Stainless Steel Construction provides exceptional material longevity paired with robust, long-lasting defense against localized atmospheric corrosion.

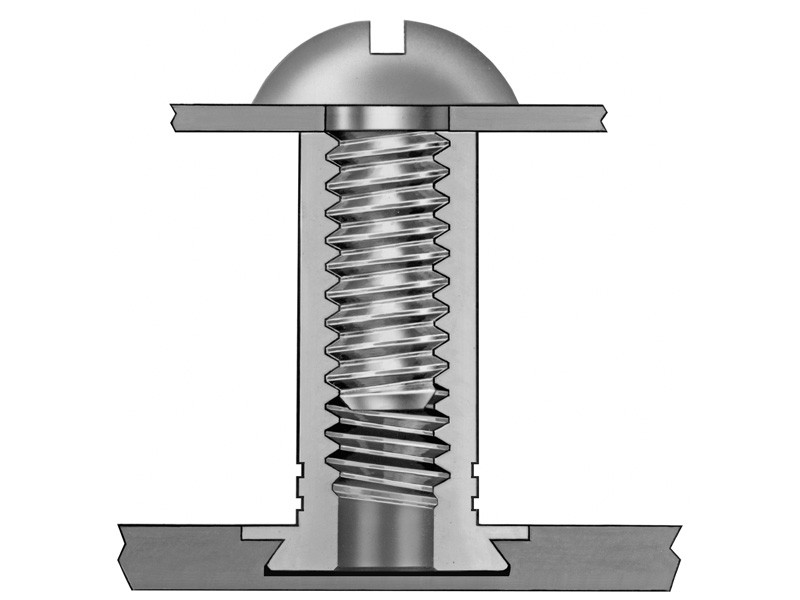

High Load Capacity establishes an unyielding joint where displaced sheet metal flows smoothly around the head into the undercut to safely handle substantial loads.

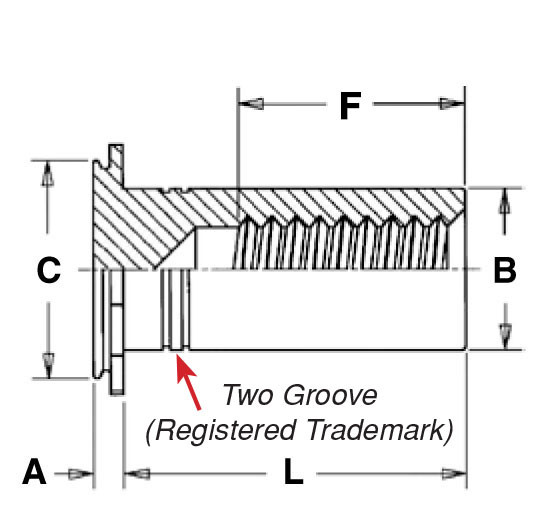

Product Specs
- SKU:
- CSOS-0420-16
- Part Number:
- CSOS-0420-16
- Thread Size:
- .250-20 (1/4-20)
- Thread Specification:
- Internal, ASME B1.1, 2B
- Standoff Length (L):
- 1.00 in
- Thread Type:
- Unified Standard
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or tested per ASTM A380
- Minimum Sheet Thickness:
- .062 in
- Hole Size in Sheet:
- .390 in (Blind Installation Hole Diameter)
- Minimum Distance Hole Centerline to Edge:
- .375 in
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
- Nominal Head/Body Diameter:
- .438 in
