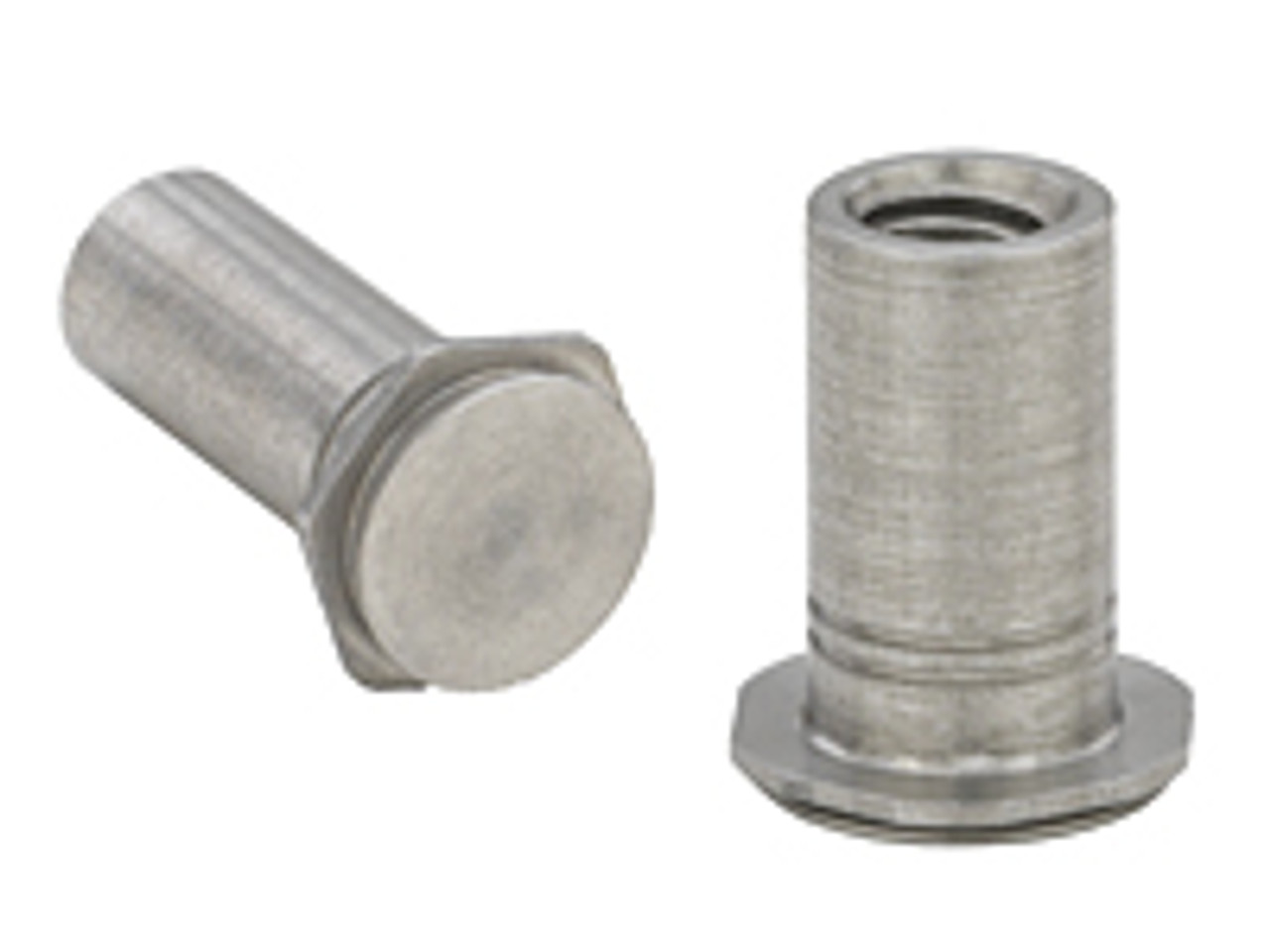

CSOS-440-6 - Stainless Steel Standoffs by PennEngineering ® (PEM ® )

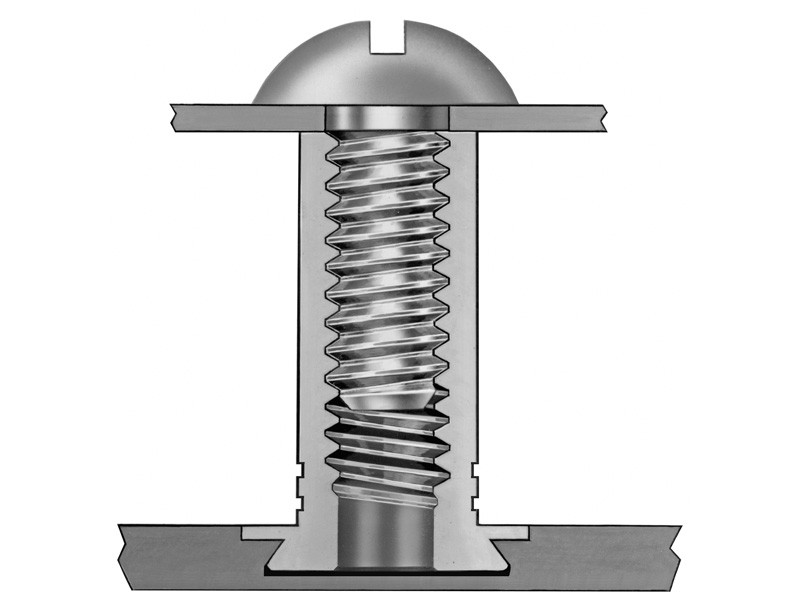

The PEM® CSOS-440-6 is a high-strength concealed-head self-clinching standoff designed to provide robust, permanent internal threads in thin metal sheets. Manufactured from durable 300 Series Stainless Steel, this unified-threaded fastener delivers exceptional physical strength and long-term corrosion resistance, making it ideal for medical electronics, marine instrumentation, and aerospace enclosures. Because the head locks into a blind, milled hole, the exterior side of the host sheet opposite the installation remains completely smooth and unmarred. Installed using a standard parallel squeezing force, the sheet material cold-flows around the head into the undercut, creating an integrated assembly with excellent load-bearing capacity while maintaining a flawless outer surface.

Concealed-Head Design installs securely into a blind, milled hole so the side of the host panel opposite the installation remains completely smooth and unmarred.

Environmental Seal Protection guards sensitive internal components by leaving the exterior face of the chassis unpierced and fully closed to dust, liquid, and air.

300 Series Stainless Steel Composition ensures superior material longevity paired with a reliable, long-lasting defense against localized atmospheric corrosion.

High Load-Bearing Capacity creates an unyielding mechanical joint as displaced metal flows tightly around the fastener head inside the precision undercut.
