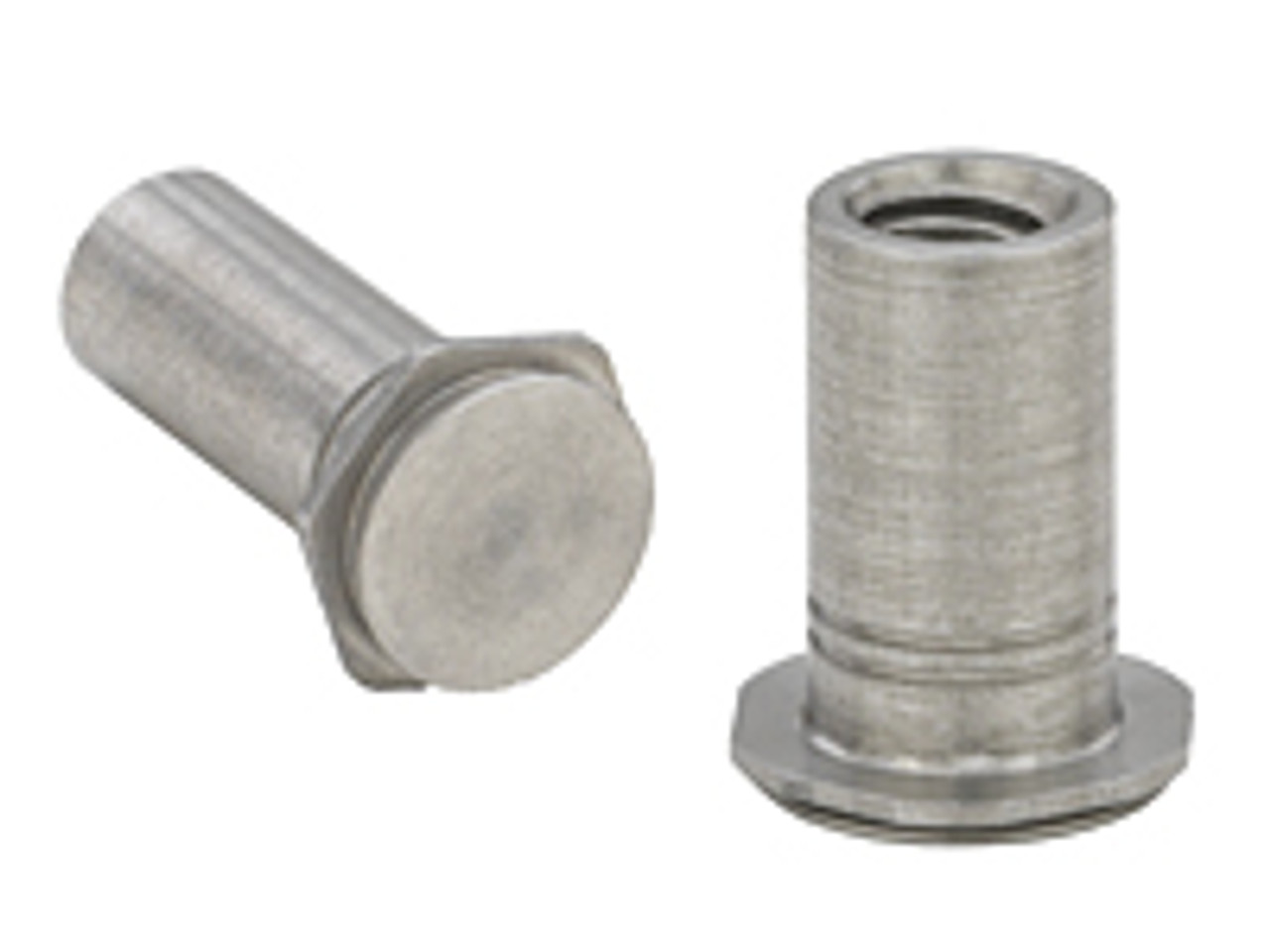

CSOS-440-8 - Stainless Steel Standoffs by PennEngineering ® (PEM ® )

The PEM® CSOS-440-8 is a high-performance concealed-head self-clinching standoff engineered to provide durable, permanent threads for component spacing and mounting in thin metal sheets. Fabricated from rugged 300 Series Stainless Steel, this unified-threaded fastener delivers exceptional corrosion resistance, making it an excellent solution for high-end consumer electronics, medical instruments, and aerospace enclosures. Because the hardware integrates into a blind, milled hole, the side of the host panel opposite the installation remains completely smooth and unmarred. When installed using standard parallel squeezing equipment, the displaced sheet material cold-flows seamlessly around the standoff's head into its undercut, providing massive load capacity and a clean, flush aesthetic.

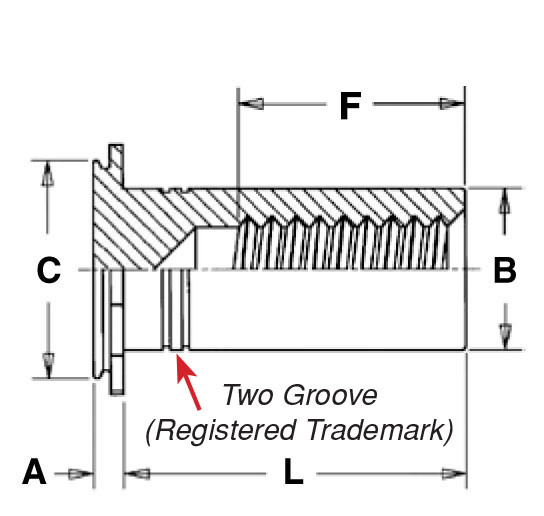

Concealed-Head Design installs directly into a blind, milled hole to ensure the exterior face of the sheet opposite the installation stays completely smooth and unmarked.

Environmental Ingress Protection secures electronic enclosures by leaving the external panel face unpierced and completely sealed against air, liquid, dust, and gases.

300 Series Stainless Steel Material provides substantial physical durability alongside dependable, long-term defense against atmospheric corrosion.

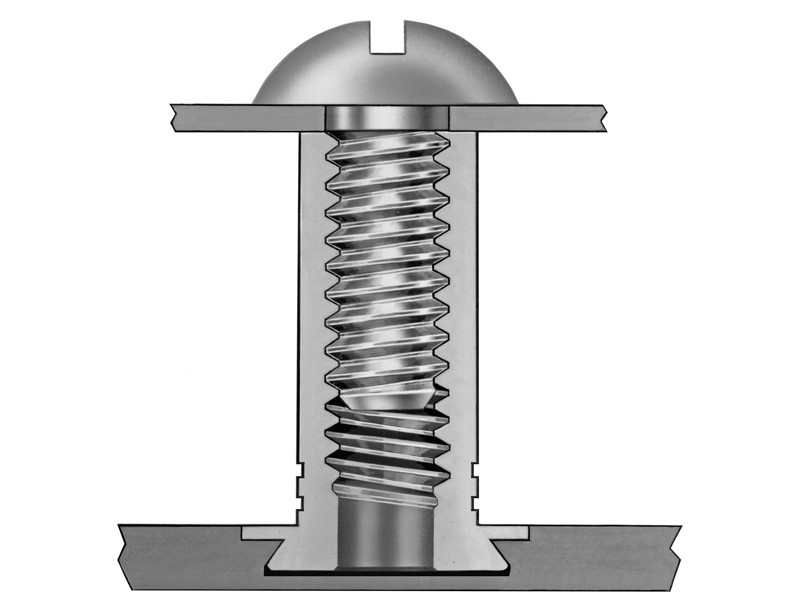

High Load-Bearing Capacity creates an unyielding mechanical joint as displaced host metal wraps tightly around the fastener head inside the undercut.
