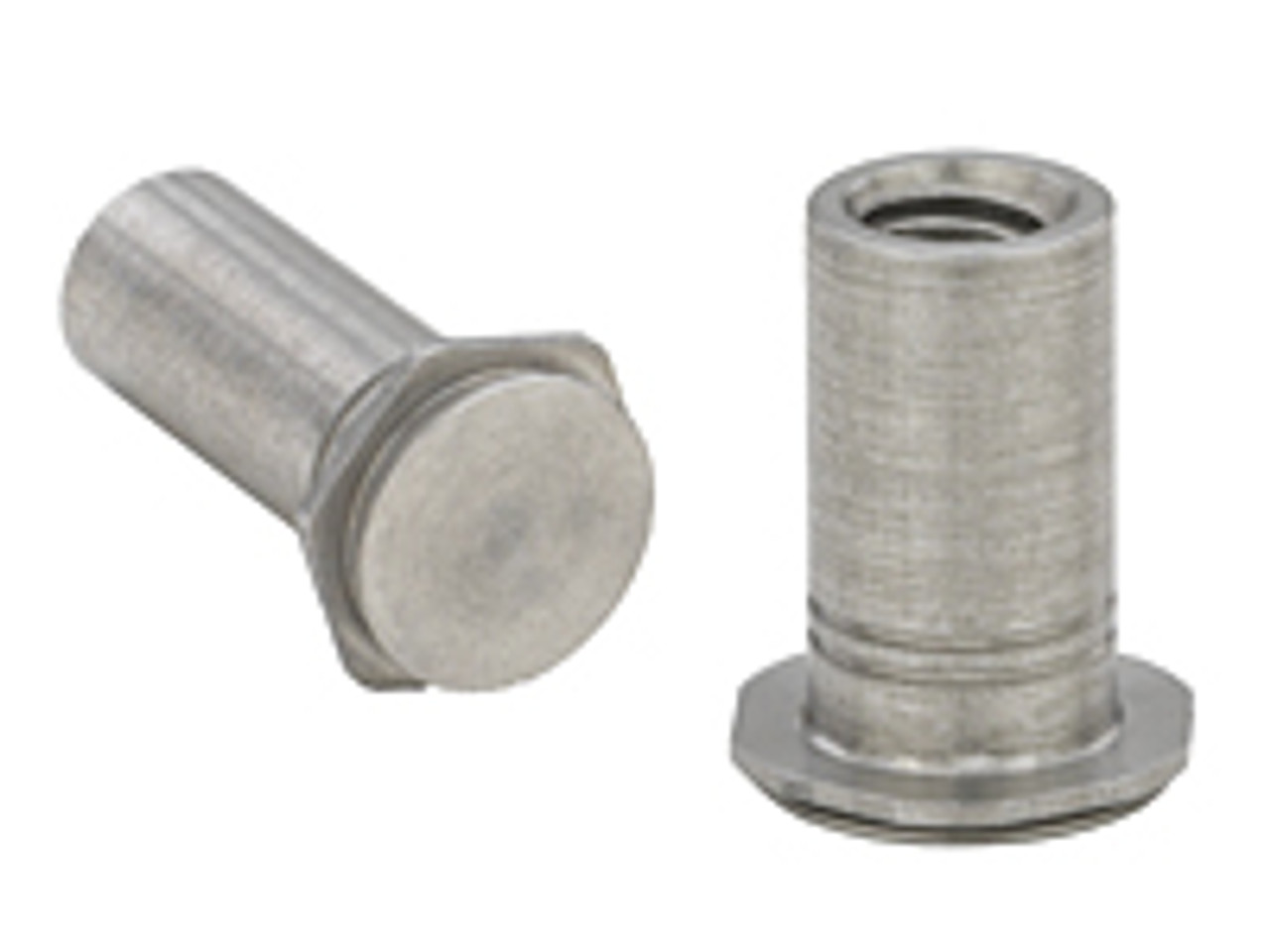

CSOS-M4-8 - Stainless Steel Standoffs by PennEngineering ® (PEM ® )

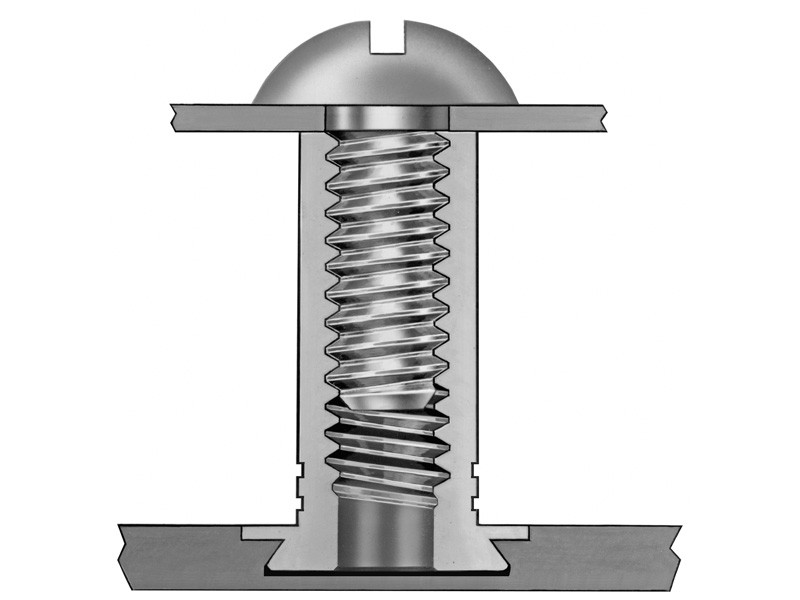

The PEM® CSOS-M4-8 is a precision-engineered concealed-head self-clinching standoff designed to create permanent, secure metric internal threads in thin metal sheets. Formed from premium 300 Series Stainless Steel, this metric-threaded fastener delivers excellent physical durability and robust corrosion protection, making it perfect for high-reliability medical devices, consumer electronics, and defense enclosures. Because the fastener head installs directly into a blind, milled hole, the side of the host panel opposite the installation remains completely smooth and unmarred. When integrated using standard parallel pressing tooling, the surrounding host material cold-flows seamlessly around the standoff's head into its precision undercut, providing immense load capacity while preserving a flawless outer aesthetic.

Concealed-Head Engineering mounts directly into a blind, milled hole to ensure the exterior face of the chassis opposite the installation remains completely smooth and unmarked.

Environmental Ingress Protection secures delicate internal electronics by keeping the external panel face unpierced and fully closed to dust, liquid, and air.

300 Series Stainless Steel Construction provides heavy-duty structural longevity paired with dependable, long-lasting defense against localized atmospheric corrosion.

High Load-Bearing Capacity establishes an unyielding mechanical joint as displaced host metal flows smoothly around the fastener head inside the undercut.
