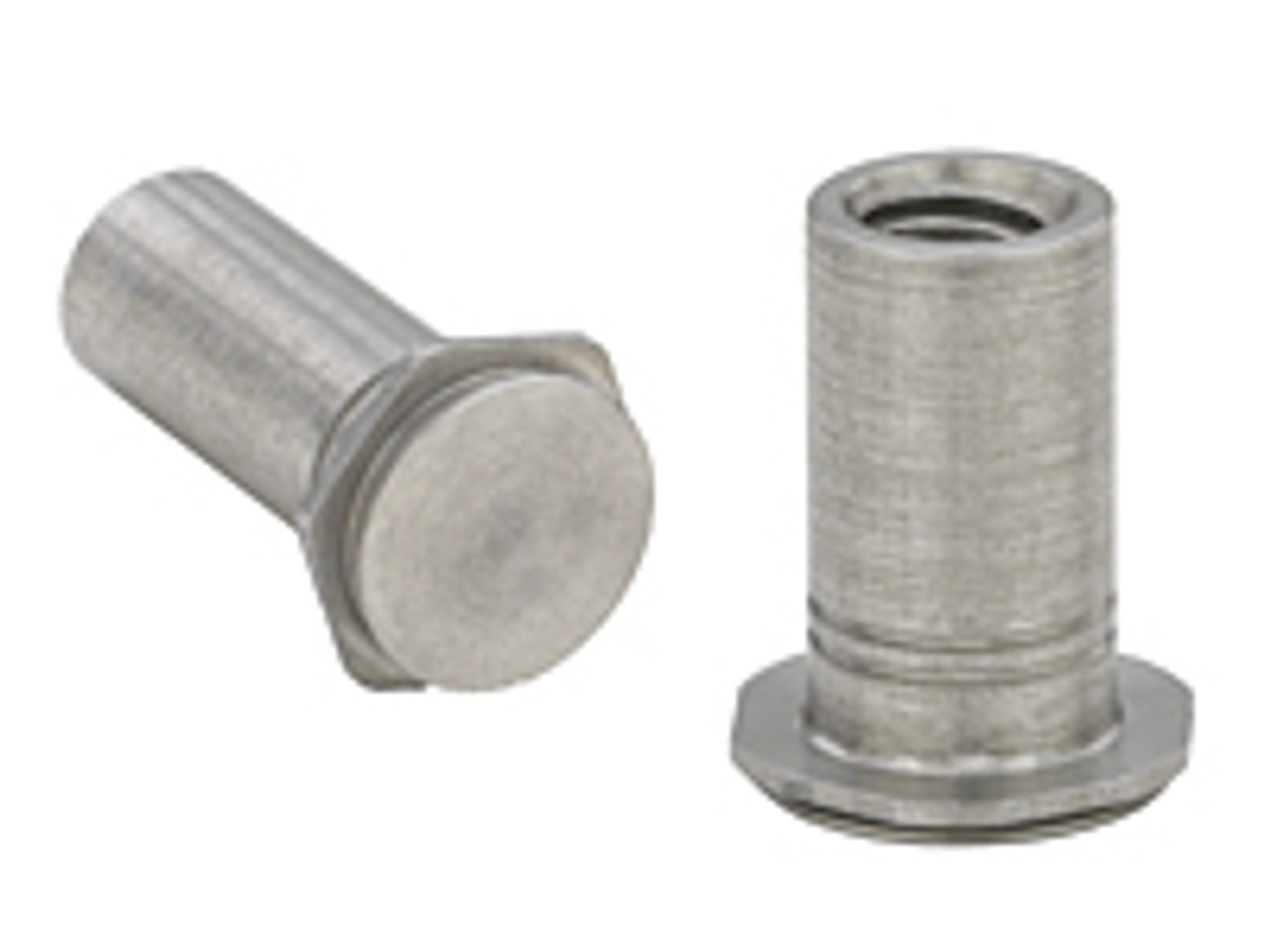

CSS-M4-8 - Stainless Steel Standoffs by PennEngineering ® (PEM ® )

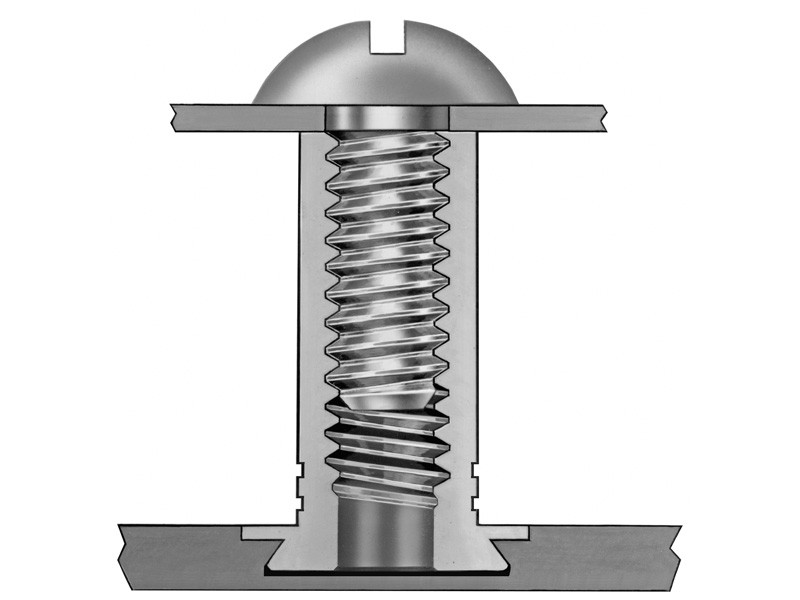

The PEM® CSS-M4-8 is a high-reliability concealed-head self-clinching standoff designed to provide durable, permanent metric internal threads in thin sheet metal fabrications. Manufactured from premium 300 Series Stainless Steel, this metric-threaded fastener ensures high structural strength and reliable corrosion protection, making it ideal for medical electronics, consumer enclosures, and aerospace instrumentation. Because the hardware installs exclusively into a blind, milled hole, the side of the host sheet opposite the installation remains completely smooth and unmarred. When integrated using standard parallel pressing equipment, the displaced host material cold-flows seamlessly into the precision undercut under the head, providing exceptional load capacity while safeguarding a flawless outer aesthetic.

Concealed-Head Engineering integrates flawlessly into a blind, milled hole to ensure the exterior face of the sheet opposite the installation remains completely smooth and unmarked.

Environmental Ingress Protection seals sensitive internal circuitry by leaving the external panel face unpierced and fully closed against liquid, dust, and air.

300 Series Stainless Steel Construction provides heavy-duty structural longevity paired with dependable, long-lasting defense against localized atmospheric corrosion.

High Load-Bearing Capacity creates an unyielding mechanical joint as displaced host metal wraps tightly around the fastener head inside the undercut.
