CSS-M4-6 - Stainless Steel Standoffs by PennEngineering ® (PEM ® )

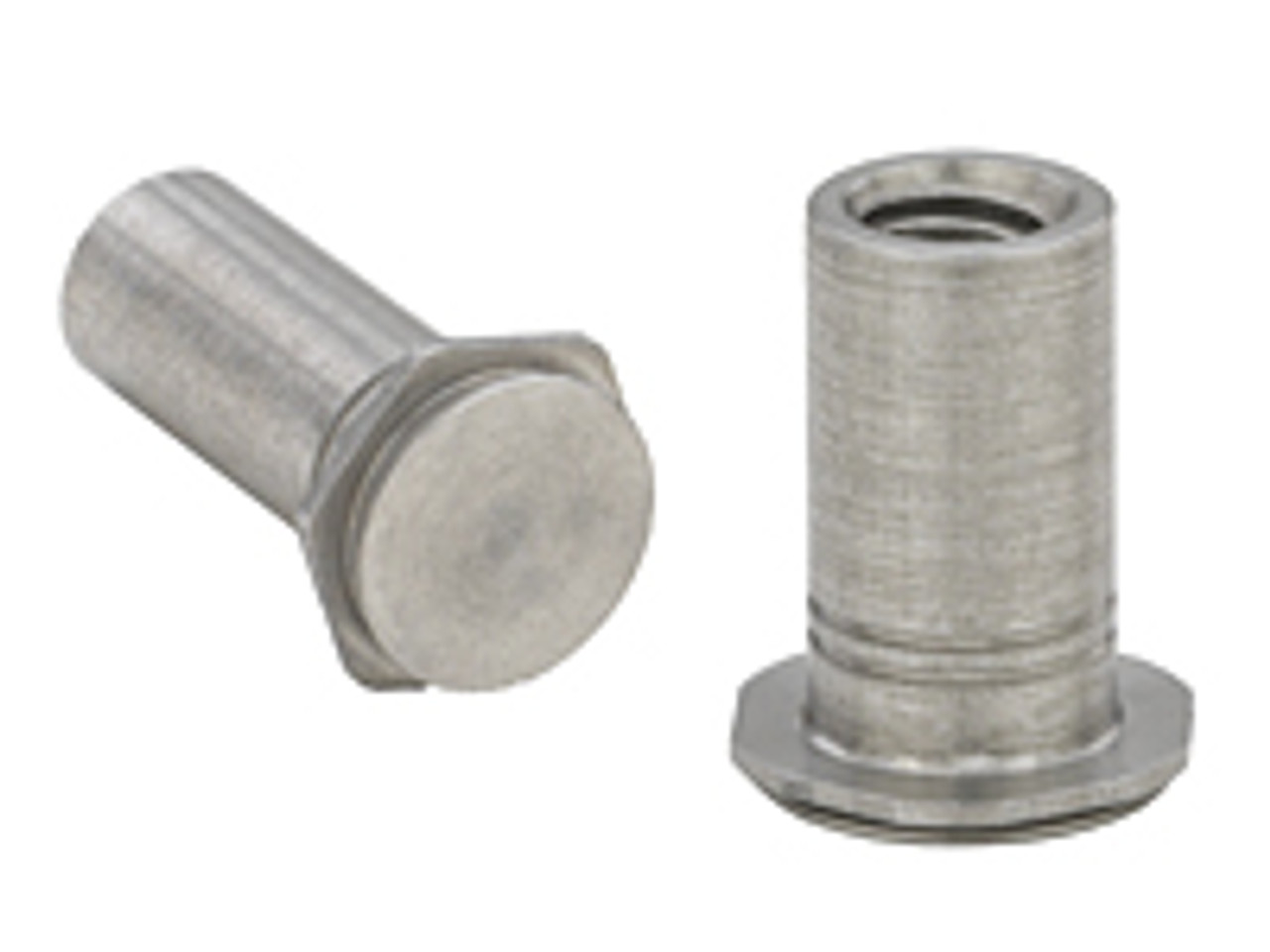

The PEM® CSS-M4-6 is a premium concealed-head self-clinching standoff designed to establish permanent, reusable metric internal threads within thin sheet metal panels. Crafted from exceptionally durable 300 Series Stainless Steel, this fastener delivers superior physical longevity and robust defense against environmental corrosion. The standoff mounts exclusively inside a milled blind hole, leaving the opposite, exterior side of the host sheet completely unmarred and smooth. When squeezed firmly into place using standard parallel press tooling, surrounding host metal cold-flows dynamically into the fastener's undercut to build an incredibly strong, high-load mechanical connection while maintaining an unblemished cosmetic outer look.

Concealed-Head Engineering integrates flawlessly into a blind, milled hole to ensure the exterior face of the sheet opposite the installation remains completely smooth and unmarked.

Environmental Ingress Protection seals sensitive internal circuitry by leaving the external panel face unpierced and fully closed against liquid, dust, air, and gases.

300 Series Stainless Steel Construction provides heavy-duty structural strength combined with dependable, long-lasting resistance to localized atmospheric corrosion.

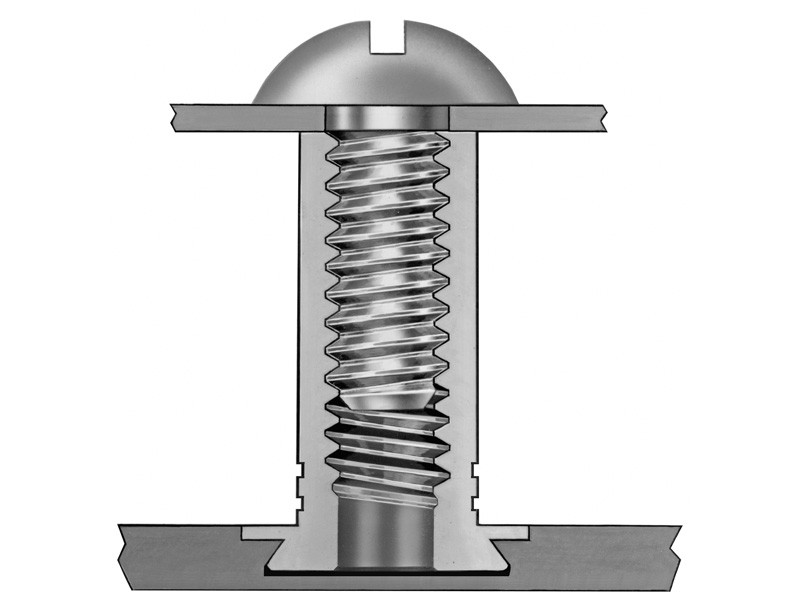

Substantial Load-Bearing Capacity creates an unyielding permanent joint as displaced host metal flows smoothly around the fastener head inside the undercut.
