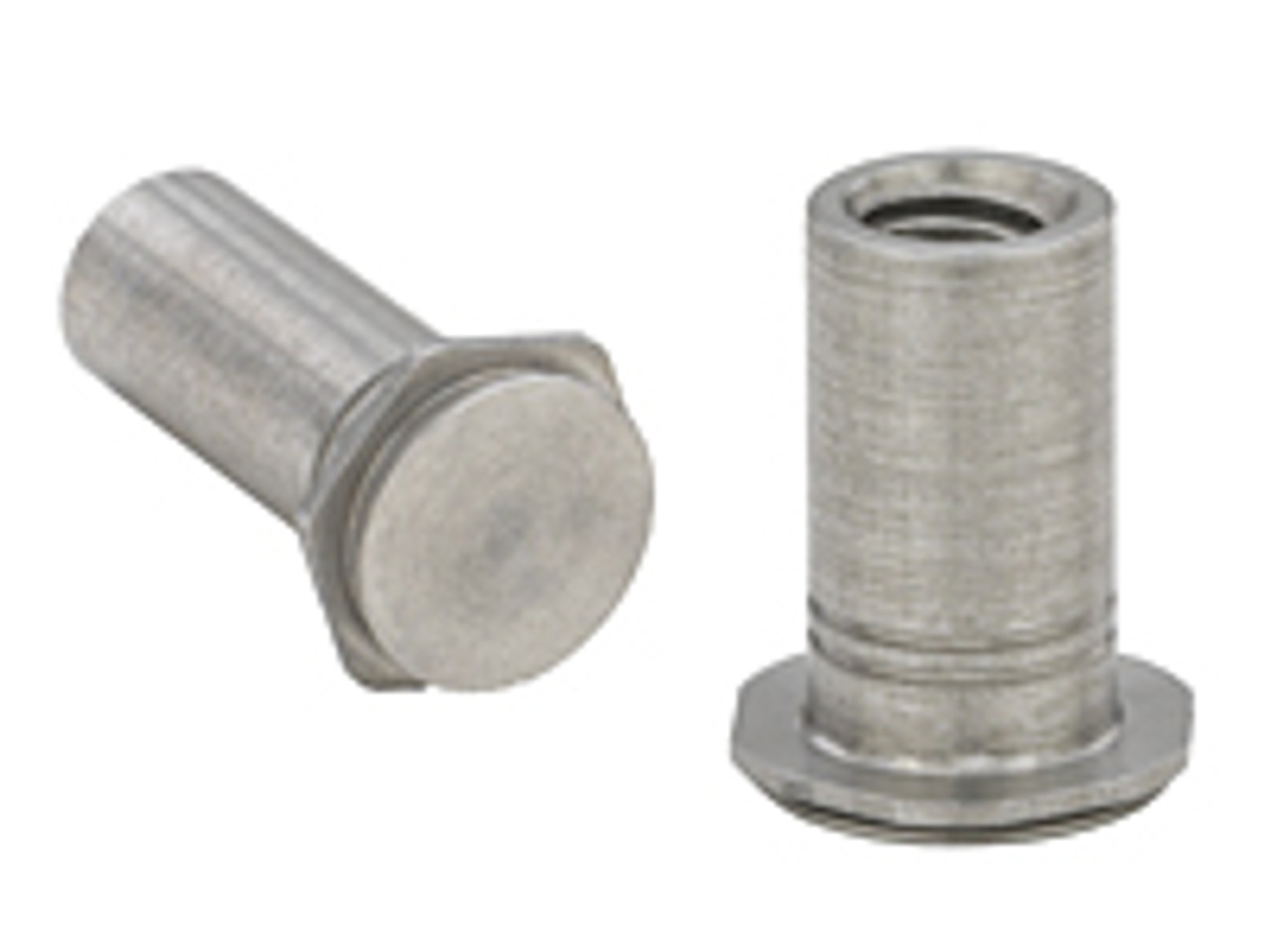

CSS-M4-12 - Stainless Steel Standoffs by PennEngineering ® (PEM ® )

The PEM® CSS-M4-12 is a high-performance concealed-head self-clinching standoff engineered to provide robust, permanent metric internal threads in thin sheet metal fabrications. Fabricated from premium 300 Series Stainless Steel, this metric-threaded hardware offers exceptional physical durability and long-term corrosion resistance, making it an excellent selection for high-reliability medical equipment, consumer electronics, and defensive enclosure systems. Because the hardware mounts securely into a blind, milled hole, the side of the host sheet opposite the installation remains completely smooth and unmarred. During installation via parallel squeezing action, the surrounding panel material cold-flows seamlessly around the standoff's head into its undercut, ensuring immense load capacity while delivering a clean, immaculate exterior aesthetic.

Concealed-Head Design installs directly into a blind, milled hole so the side of the host panel opposite the installation remains completely smooth and unmarked.

Environmental Ingress Protection secures internal components by keeping the external panel face unpierced and fully closed to dust, liquid, and air.

300 Series Stainless Steel Material delivers heavy-duty structural longevity paired with dependable, long-lasting defense against localized atmospheric corrosion.

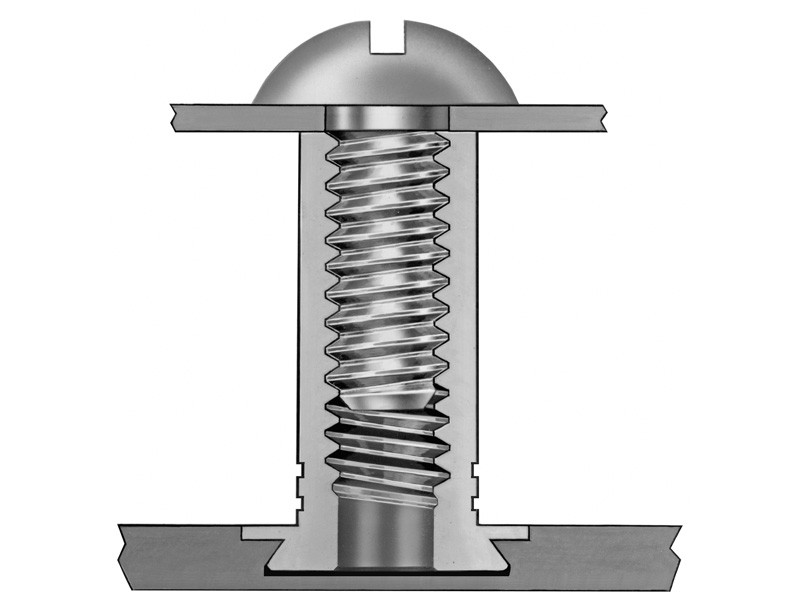

High Load-Bearing Capacity creates an unyielding mechanical joint as displaced host metal wraps tightly around the fastener head inside the undercut.
