Product Description

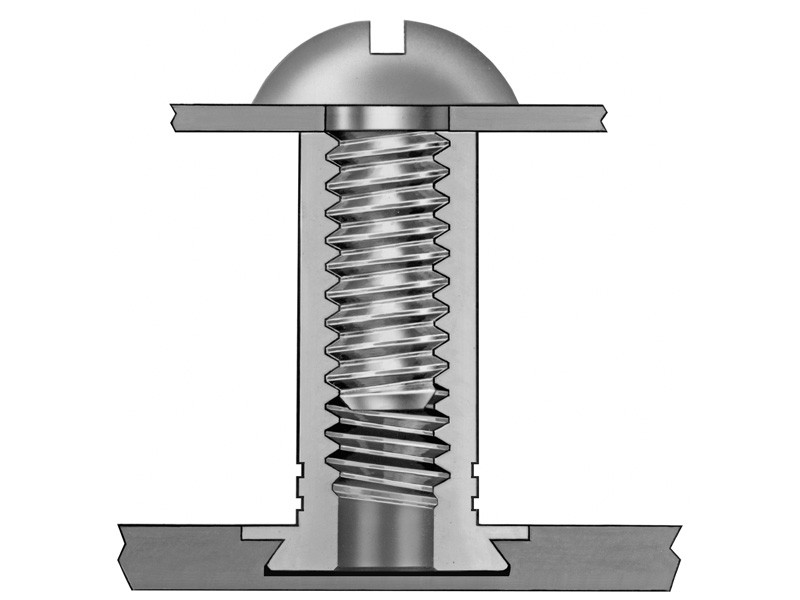

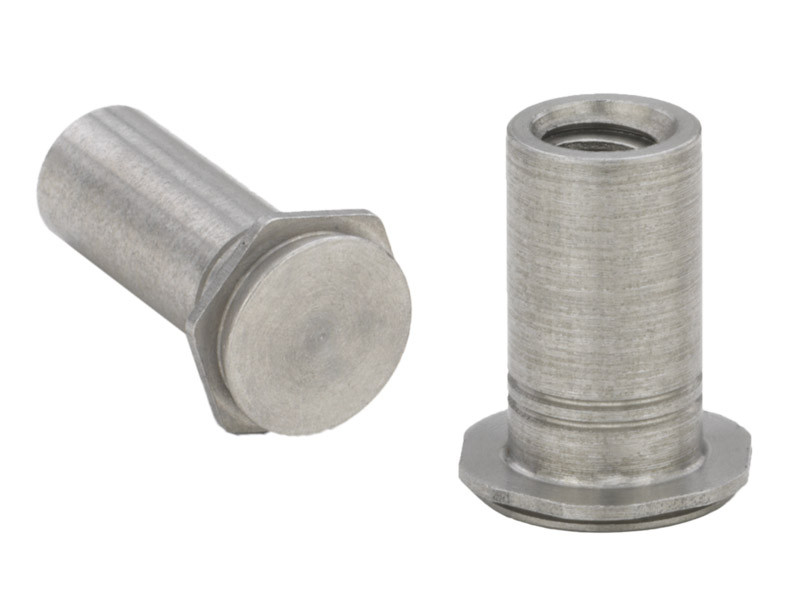

The PEM® CSOS-632-3 is a high-performance concealed-head self-clinching standoff engineered to provide permanent, secure mounting in ultra-thin metal assemblies. Fabricated from durable 300 Series stainless steel, this fastener is ideal for applications requiring high corrosion resistance and substantial load-bearing performance. It installs cleanly by pressing the fastener head into a milled blind hole, prompting displaced sheet metal to flow smoothly around the head and lock it permanently into the undercut. Its unique concealed-head feature leaves the reverse side of the metal sheet completely unmarred and smooth, preserving aesthetic appeal and critical surface integrity.
Concealed-Head Engineering allows for flawless surface presentation by keeping the side opposite the installation completely unmarred and smooth.
Robust Load Capacity locks the fastener head securely into the milled blind hole, enabling it to withstand substantial pullout and tightening forces. 300
Series Stainless Steel Construction delivers excellent structural durability and corrosion resistance across demanding operating environments. Clean
Self-Clinching Installation utilizes standard press tooling to drive displaced sheet metal smoothly into the undercut for a permanent mechanical lock.
Product Specs
- SKU:
- CSOS-632-3
- Part Number:
- CSOS-632-3
- Thread Size:
- .138-32 (#6-32)
- Thread Specification:
- 2B, ASME B1.1

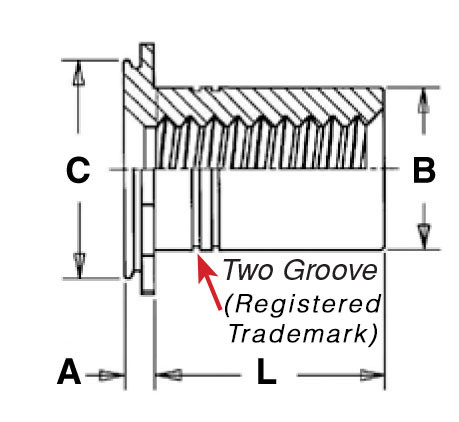

- Standoff Length (L):
- 0.187 in.
- Thread Type:
- Unified Internal Thread
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or tested per ASTM A380
- Minimum Sheet Thickness:
- 0.062 in.
- Hole Size in Sheet:
- 0.218 in.
- Minimum Distance Hole Centerline to Edge:
- 0.219 in.
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
- Hex Size (H):
- 5/16 in.
