Product Description

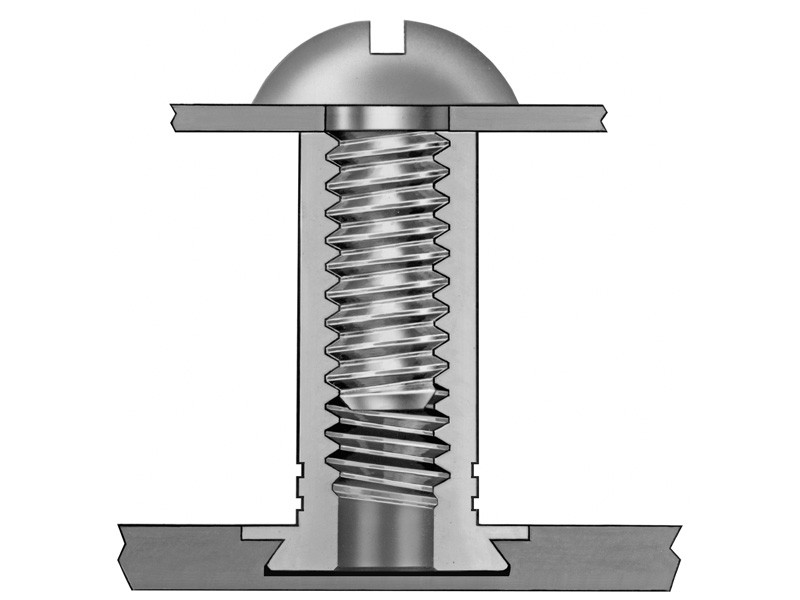

The PEM® CSOS-632-5 is a precision-engineered concealed-head self-clinching standoff designed to create permanent internal threads for component mounting or spacing in thin metal fabrications. Formed from high-grade 300 Series Stainless Steel, this unified-threaded fastener delivers superior physical longevity and rugged corrosion resistance, making it an excellent solution for consumer electronics, medical instruments, and industrial enclosures. Because the fastener integrates seamlessly into a blind, milled hole, the exterior face of the host sheet opposite the installation remains completely smooth and unmarred. During installation using standard parallel pressing equipment, the host sheet metal cold-flows around the head into its undercut, providing immense load capacity and a clean aesthetic.
Concealed-Head Design mounts securely into a blind, milled hole to ensure the exterior face of the host sheet remains completely smooth and unmarked.
Environmental Ingress Protection secures internal electronics by keeping the external panel face unpierced and fully closed to dust, liquid, and air.
300 Series Stainless Steel Construction provides strong structural integrity paired with dependable, long-lasting defense against localized atmospheric corrosion.
High Load-Bearing Capacity creates an unyielding mechanical lock as displaced host metal wraps tightly around the fastener head inside the undercut.
Product Specs
- SKU:
- CSOS-632-5
- Part Number:
- CSOS-632-5
- Thread Size:
- .138-32 (#6-32)
- Thread Specification:
- Internal, ASME B1.1, 2B

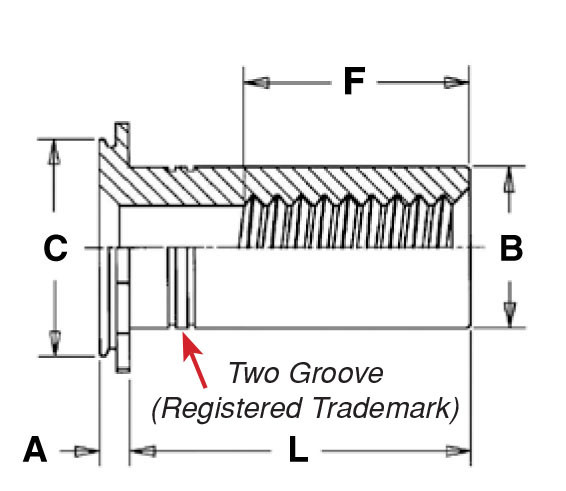

- Standoff Length (L):
- 0.312 in
- Thread Type:
- Unified Standard
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or tested per ASTM A380
- Minimum Sheet Thickness:
- .062 in
- Hole Size in Sheet:
- .218 in (Blind Mounting Hole Diameter)
- Minimum Distance Hole Centerline to Edge:
- .219 in
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
- Nominal Head/Body Diameter:
- 5/16 in
