CSS-440-3 - Stainless Steel Standoffs by PennEngineering ® (PEM ® )

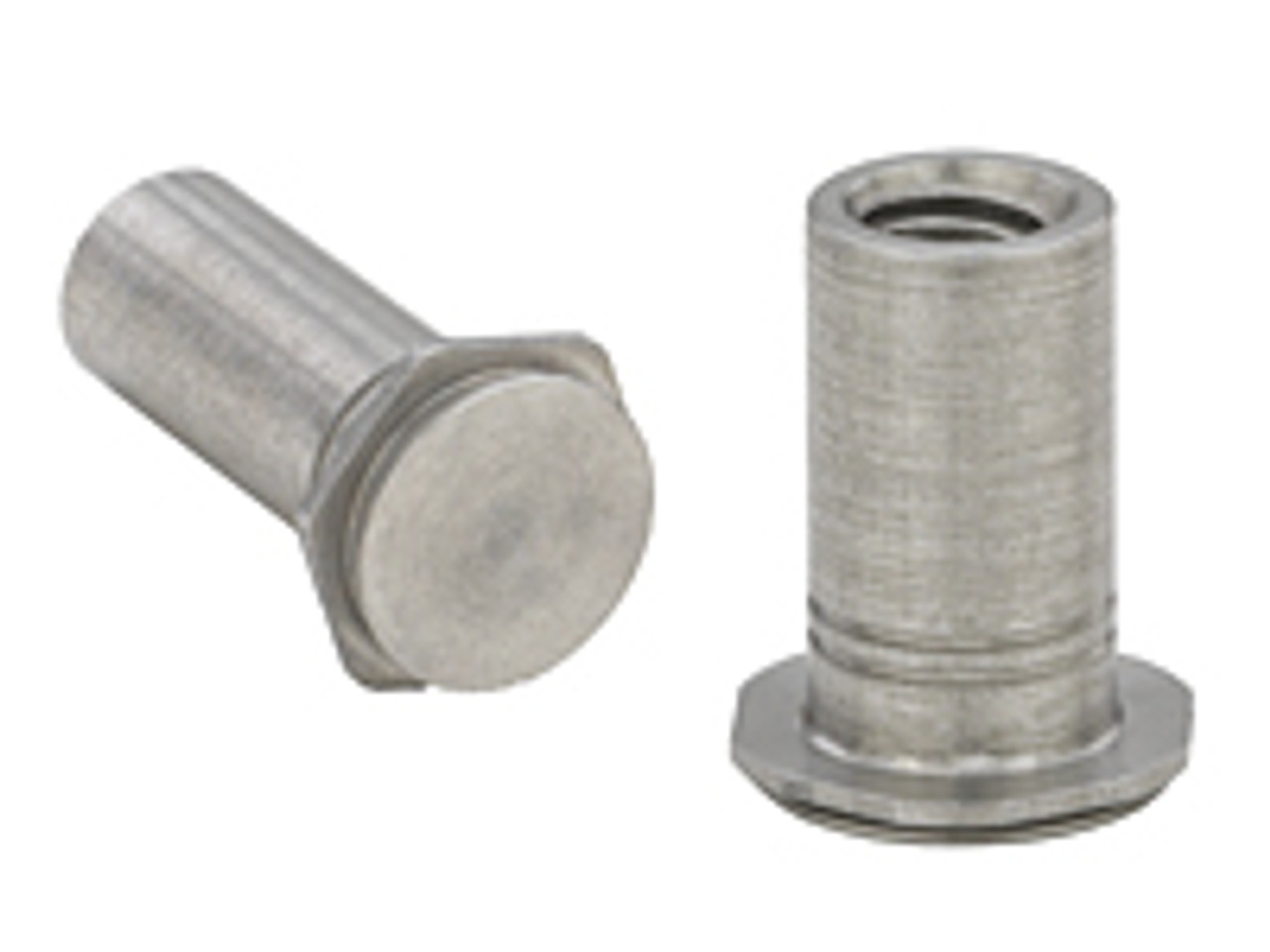

The PEM® CSS-440-3 is a precision-engineered concealed-head self-clinching standoff designed to establish durable, permanent internal threads for component spacing or mounting in thin metal sheets. Formed from high-grade 300 Series Stainless Steel, this unified-threaded fastener delivers exceptional physical durability and long-term corrosion resistance, making it an excellent choice for medical devices, consumer electronics, and aerospace enclosures. Because the hardware integrates securely into a blind, milled hole, the side of the host sheet opposite the installation remains completely smooth and unmarred. When installed using standard parallel squeezing equipment, the displaced sheet metal cold-flows smoothly around the standoff's head into its precision undercut, ensuring remarkable load capacity while maintaining a flawless external aesthetic.

Concealed-Head Design installs directly into a blind, milled hole to ensure the exterior face of the sheet opposite the installation remains completely smooth and unmarked.

Environmental Ingress Protection safeguards delicate internal electronics by keeping the external panel face unpierced and fully closed to dust, liquid, and air.

300 Series Stainless Steel Material delivers strong structural integrity paired with dependable, long-lasting defense against localized atmospheric corrosion.

High Load-Bearing Capacity creates an unyielding mechanical joint as displaced host metal wraps tightly around the fastener head inside the undercut.
