Product Description

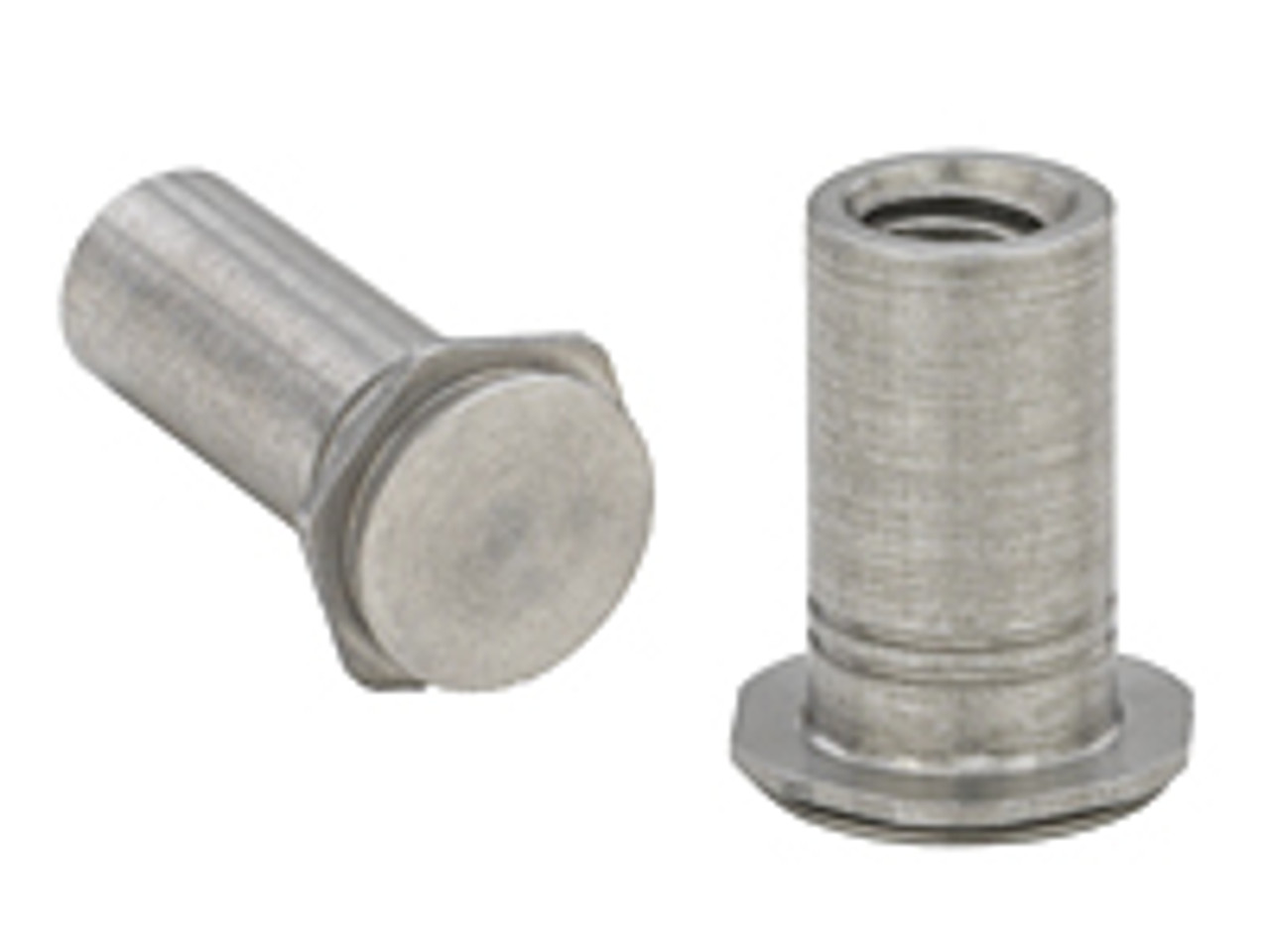

These standoffs ensure permanent mounting in metal sheets as thin as 1.60mm. The fastener head is locked securely in a blind, milled hole and is able to handle substantial loads. The concealed-head feature allows the side of the sheet opposite installation to remain smooth. Sheet preparation only requires a milled blind hole to the recommended minimum depth. Center-cutting end mills for hole preparation are available from PennEngineering. Installation of the concealed-head studs and standoffs is simple using a hollow anvil and solid punch. Place the head of the fastener in the hole and insert using any standard press. Displaced sheet metal flows smoothly around the head into the undercut.
Permanent mounting in metal sheets as thin as 1.60mm.
Concealed-head design allows the side opposite of installation to remain entirely smooth.
Fastener head locks securely into a blind, milled hole to handle substantial loads.
Simple installation process utilizing a standard press with a hollow anvil and solid punch.
Displaced sheet metal flows smoothly into the undercut for a clean finish.
Product Specs
- SKU:
- CSS-M3-4
- Part Number:
- CSS-M3-4
- Thread Size:
- M3 x 0.5
- Thread Specification:
- Internal, ANSI / ASME B1.13M, 6H
- Standoff Length (L):
- 4 mm
- Thread Type:
- Internal
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or Tested Per ASTM A380
- Minimum Sheet Thickness:
- 1.60 mm
- Hole Size in Sheet:
- 5.41 mm
- Minimum Distance Hole Centerline to Edge:
- 4.8 mm
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
- Hex Size (H):
- 6.35 mm (Nominal)
