LA4-M4-1MD - Floating self-clinching, locking thread nut by PennEngineering ® (PEM ® )

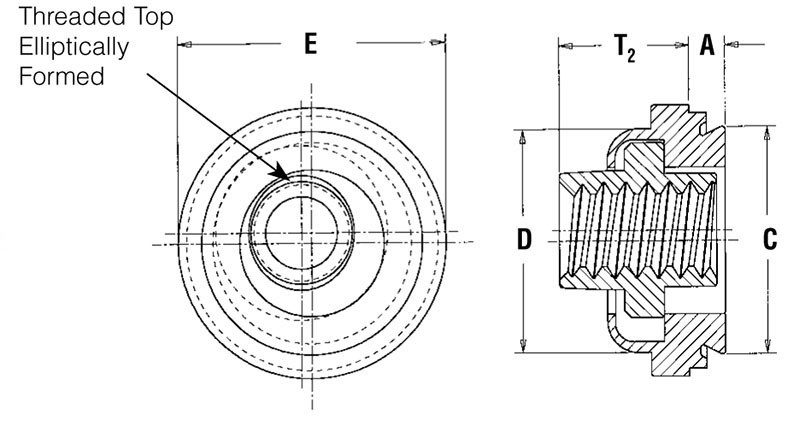

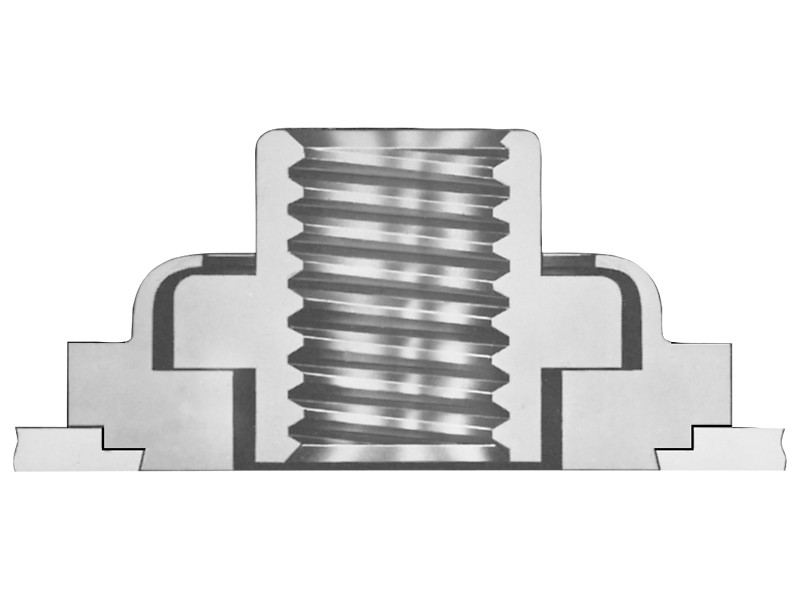

The LA4-M4-1MD is a floating self-clinching nut designed to provide high-strength locking threads in thin metal assemblies. This fastener features a unique floating nut that allows for 0.76mm of total adjustment to compensate for mating hole misalignment. It incorporates a prevailing torque locking feature to ensure that screws remain secure even when subjected to vibration. Specifically engineered for use in stainless steel sheets, the self-clinching design allows the fastener to become a permanent part of the assembly when squeezed into a prepared hole, ensuring the reverse side of the host sheet remains completely flush.

Misalignment Compensation: Permits 0.38mm minimum float in all directions from center (0.76mm total) to correct for mating hole inaccuracies.

Self-Locking Thread: Features a prevailing torque locking element to secure hardware against loosening from vibration.

Permanent Attachment: Clinches into place for a high-strength, permanent installation that eliminates loose parts.

Flush Installation: The side opposite the installation remains flush, providing a clean surface and functional clearance.

Stainless Steel Specialized: Constructed from 400 Series Stainless Steel for reliable performance in 300 Series stainless steel sheets.

NASM - Products meet Military Specifications (MS) and National Aerospace Standards (NAS) requirements as applicable and are shipped with appropriate documentation.
