Product Description

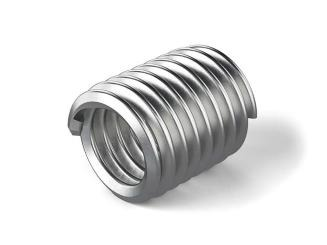

1/4"-28 TPI, 0.306 to 0.326" OD, 0.25" L, Gray, Dry Film Lubricant, 304 Stainless Steel, 5-Coils, Diamond Knurled, Free Running, Screw Threaded Insert T1191-4CW250
Screw Threaded Insert Type Diamond Knurled, Free Running Nominal Diameter 1/4 Inch TPI 28 Thread Series UNF-2A External Thread Size 0.306 to 0.326 Inch Drill Size 6.7 Millimeter Overall Length 0.25 Inch Material AS7245 304 Stainless Steel Finish Dry Film Lubricant Tensile Strength 200000 to 250000 PSI Application Plastic Diameter 1 Number of Coils 5 Locking Torque 30 Inch-Pound Countersink 0.31 to 0.34 Inch Color Gray Applicable Standard NASM8846, NAS1130, ASME B18.29.1
Product Videos
Custom Field
Grip Range 1
Inner Diameter (I.D.) 0.306 to 0.326 in.
Length 0.25 in.
Material Dry Film Lubricant
Pitch 0.306 to 0.326 in.
RoHS Compliant Gray
Thread 1/4 in.-28 TPI
Type Diamond Knurled, Free Running
