Product Description

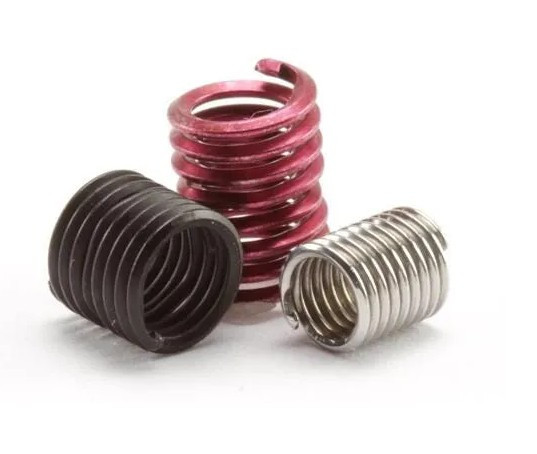

The Heli-Coil® T1084-6E090 is a tangless, free-running wire thread insert precision-manufactured from Inconel X-750 with a dry film lubricant coating. Engineered to form permanent, high-strength 3/8-24 UNF fine internal threads in extreme high-temperature and demanding environments, its tangless design completely eliminates tang break-off and removal steps, accelerating assembly workflows while eliminating foreign object debris (FOD) risks. The high-nickel Inconel X-750 superalloy ensures exceptional oxidation resistance and thermal stability, while the dry film lubricant coating lowers insertion torque and prevents galling and thread seizing under high operational stress.
Tangless Wire Construction eliminates tang removal and vacuum retrieval steps, shortening assembly cycles and completely preventing foreign object debris (FOD) hazards.
Inconel X-750 Superalloy provides superior thermal stability, high-temperature strength, and outstanding resistance to corrosion and oxidation.
Dry Film Lubricant Coating reduces installation torque, prevents thread galling, and ensures smooth fastener engagement under high temperatures.
Free-Running Thread Profile allows standard male fasteners to pass through smoothly without applying friction locking torque.
3/8-24 UNF Fine Threading reinforces soft parent metals and repairs damaged fine internal threads in high-precision structural assemblies.
Product Specs
- SKU:
- T1084-6E090
- Thread Size (Inch):
- 3/8-24
- Thread:
- UNF
- Overall Insert Length (Decimal Inch):
- 0.900
- Tang:
- Tangless
- Material:
- Inconel X-750
- Number of Free Coils:
- 12
- Length to Diameter Ratio:
- 2.4:1
- Coating/Finish:
- Dry Film Lubricant
