Product Description

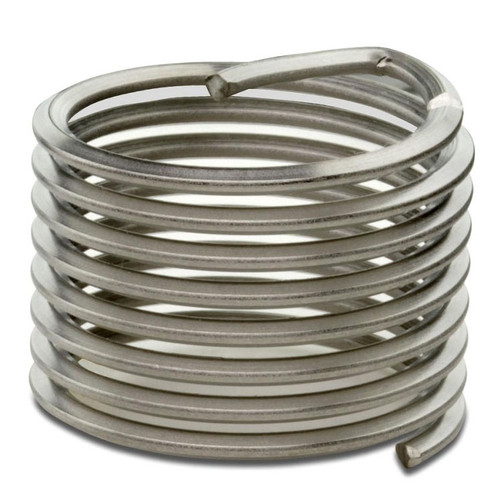

The Heli-Coil 1084-3CNW045 is a precision-engineered free-running metric wire thread insert designed to generate permanent, wear-resistant internal threads in high-stress structural materials. Precision-formed from cold-drawn 304 stainless steel wire with a distinctive diamond cross-section, this tanged insert automatically adapts to the thermal expansion and contraction profiles of the parent material. Featuring a streamlined free-running configuration, it allows smooth, uninhibited rotation of the metric male bolt until final clamping torque is applied. The specialized wire geometry maximizes cross-sectional thread contact to eliminate localized stress fatigue, supplying excellent stripping protectionand structural thread reinforcement in low-strength alloys.
Free-Running Spiral Geometry Enables the mating metric fastener to spin freely through the insert profile without impedance down to the final seating face.
Standard Driving Tang Equipped with a strong, integrated installation tang built into the leading coil for positive tool engagement and precise depth setting.
304 Stainless Steel ResilienceManufactured from work-hardened corrosion-resistant steel to shield soft alloy assemblies against internal thread stripping, galling, and wear.
Dry Film Lubricant Finish Pre-coated with a high-performance dry film lubrication layer that ensures uniform seating torque values and minimizes thread friction.
Product Specs
- SKU:
- 1084-3CNW045
- Thread Size (Inch):
- 0.118 (Metric M3)
- Thread:
- M3x0.5 Metric Coarse
- Overall Insert Length (Decimal Inch):
- 0.1772 (4.5 mm Nominal)
- Tang:
- Tanged
- Material:
- 304 Stainless Steel
- Number of Free Coils:
- 6-3/8
- Length to Diameter Ratio:
- 1.5:1 (1.5D Nominal Length)
- Coating/Finish:
- Dry Film Lubricant
