Product Description

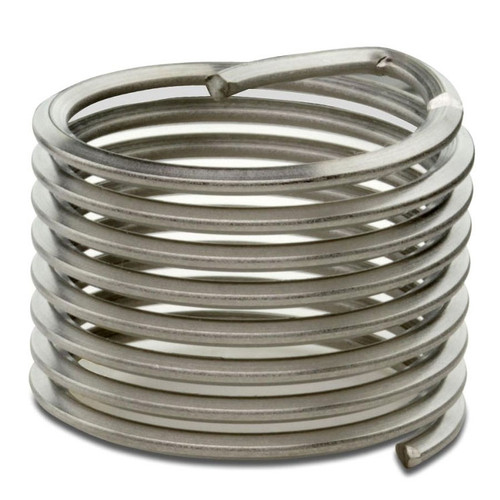

M4 x 0.7 MM, 5.05 to 5.6 MM OD, 10 MM L, Nitronic 60, 11-1/8-Coils, Diamond Knurled, Free Running, Tanged, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Free Running, Tanged Nominal Diameter M4 Pitch 0.7 Millimeter External Thread Size 5.05 to 5.6 Millimeter Drill Size 4.25 Millimeter Overall Length 10 Millimeter Material UNS S21800 Nitronic 60 Tensile Strength 200000 PSI Application Plastic Diameter 2.5 Number of Coils 11-1/8 Locking Torque 0.9 Millimeter Countersink 4.7 to 5.3 Millimeter Applicable Standard MA1565, MA3279/3280/3281, NAS0276, ASME B18.29.2M-2005
Product Specs
- SKU:
- 1084-4EN100
- Grip Range:
- 2.5
- Inner Diameter (I.D.):
- 5.05 to 5.6 mm.
- Length:
- 10 mm.
- Pitch:
- 5.05 to 5.6 mm.
- Shape:
- M4 x 0.7 mm.
- Type:
- Diamond Knurled, Free Running, Tanged
