Product Description

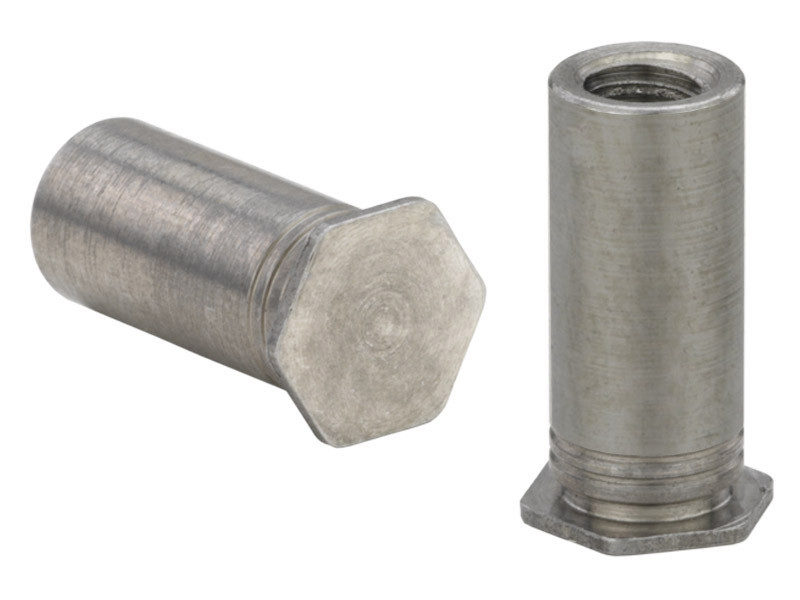

The BSO-632-10ZI is a self-clinching standoff engineered for installation into thin metal sheets. Unlike through-threaded standoffs, the blind design features a closed end that prevents screws from protruding through the reverse side of the panel. This protects internal components from debris, prevents dust and moisture ingress, and ensures a smooth, flush exterior surface.
Blind Threading: Ensures the outer surface of the panel remains untouched and sealed against contaminants.
Flush Mounting: The head of the standoff installs flush with the surface of the metal sheet.
High Torque Resistance: The hexagonal head design provides exceptional resistance to rotation during assembly.
Precision Spacing: Provides consistent, accurate spacing for PCBs and electronic components within an enclosure.
Product Specs
- SKU:
- BSO-632-10ZI
- Manufacturer:
- PennEngineering® (PEM®)
- Part Number:
- BSO-632-10ZI
- Thread Size:
- #6-32 (.138-32)
- Thread Type:
- Unified (UNC), Internal, 2B
- Length Code:
- Length Code
- Material:
- Heat-Treated Carbon Steel
- Finish:
- Zinc plated, clear chromate (ZI)
- Material Code:
- Steel (Heat-Treated)
