Product Description

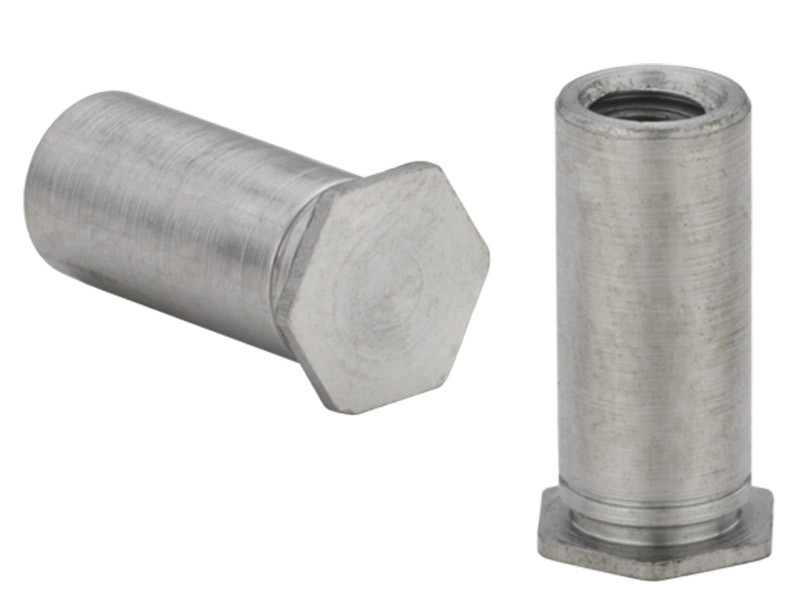

The PEM® BSO4-032-10 is a self-clinching blind threaded standoff specifically engineered for permanent installation into stainless steel sheets. Unlike standard fasteners, it is manufactured from specialty hardened 400 series stainless steel, allowing it to successfully clinch into host materials with hardness ratings as high as HRB 88. Its closed-end (blind) design creates an impermeable barrier that seals the assembly against contaminants such as dust and moisture while simultaneously protecting internal components by preventing screws from over-extending into the chassis. By utilizing a self-clinching technical design, the standoff becomes an integral part of the sheet when squeezed into a round hole, providing superior pushout and torque-out resistance with a head that remains flush with the mounting surface.
Stainless Steel Compatibility: Specifically designed to clinch into thin stainless steel sheets where standard fasteners may fail.
Environmental Sealing: The blind, closed-end construction prevents the passage of air, liquid, or debris through the mounting hole.
Flush-Mount Profile: Installs completely flush on the reverse side of the sheet for a clean, professional exterior appearance.
High Hardness Rating: Fabricated from 400 series stainless steel to ensure reliable performance in tough host materials.
Component Protection: The solid outer wall acts as a positive stop, preventing damage to sensitive circuitry from long screws.
Product Specs
- SKU:
- BSO4-032-10
- Part Number:
- BSO4-032-10
- Thread Size:
- .190-32 (#10-32)
- Thread Specification:
- Unified Standard Class 2B, ANSI B1.1

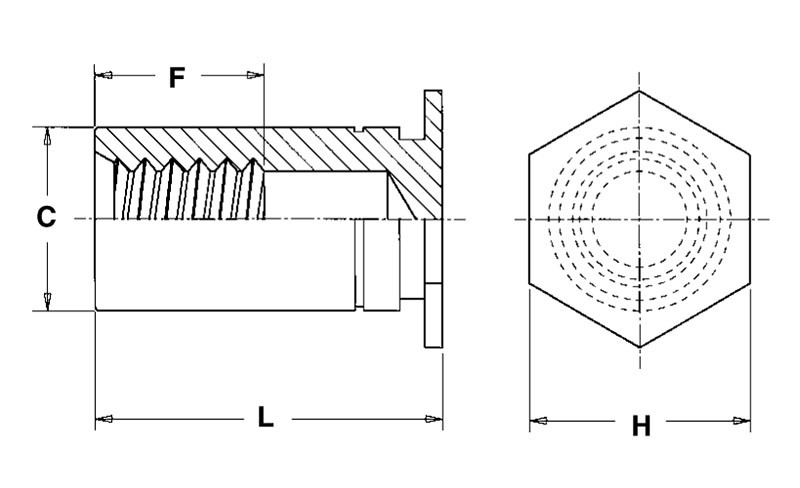

- Standoff Length (L):
- .312 in
- Thread Type:
- Internal, Blind (Closed-end)
- Fastener Material:
- 400 Series Stainless Steel
- Standard Finish:
- Passivated and/or light tight oil
- Minimum Sheet Thickness:
- .040 in
- Hole Size in Sheet:
- .281 in
- Minimum Distance Hole Centerline to Edge:
- .31 in
- For Use in Sheet Hardness:
- HRB 88 / HB 183 or less
- Hex Size (H):
- 5/16 in
