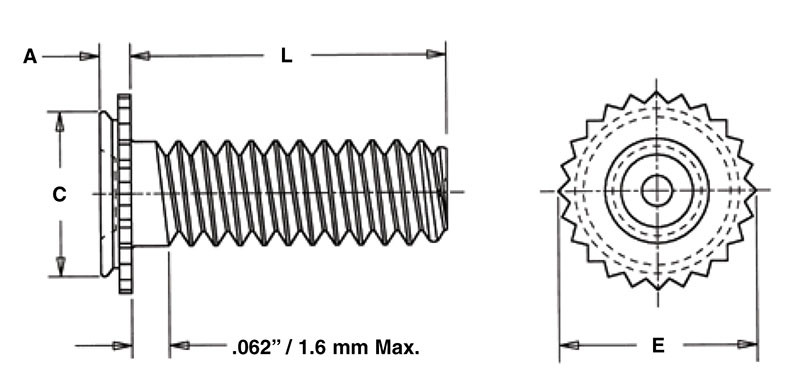

CHC-032-10 - Concealed-Head Stud by PennEngineering ® (PEM ® )

The CHC-032-10 is a premium concealed-head self-clinching stud engineered by PennEngineering® (PEM®) to establish permanent, load-bearing external threads in thin metal sheets. Designed specifically for installation into a milled blind hole, this fastener locks securely into the material while leaving the opposite side of the sheet completely unmarred and smooth. This unique mounting method preserves the structural integrity and aesthetic finish of the visible exterior panel. Manufactured from durable 300 Series Stainless Steel, it offers excellent corrosion resistance and forms a high-strength bond that effectively resists pushout and torque-out forces without the use of welding.

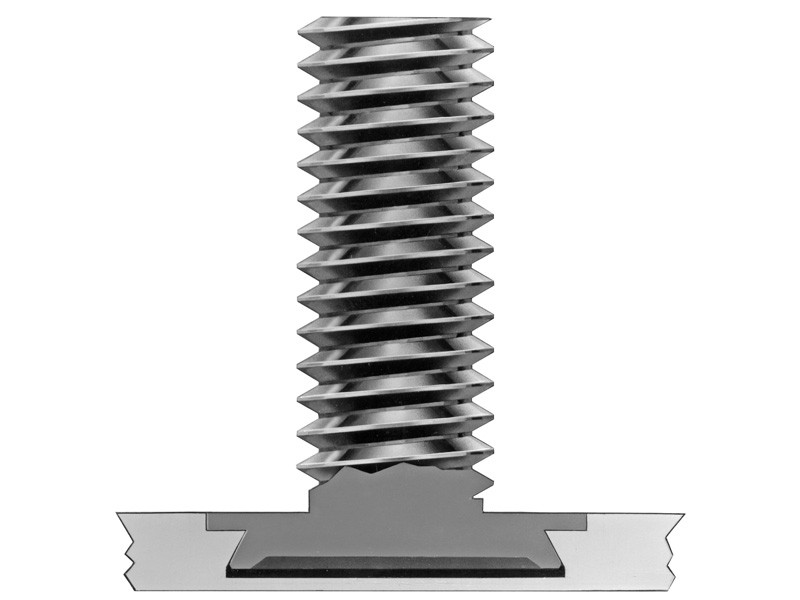

Concealed-Head Engineering: Mounts into a blind cavity so the reverse side of the panel remains entirely smooth, closed, and aesthetically pristine.

Self-Clinching Reliability: Installs permanently using standard press-in action, becoming an integral part of the metal panel assembly.

Stainless Steel Durability: Fabricated from premium 300 Series Stainless Steel to deliver reliable long-term protection against corrosion.

Strong Mechanical Hold: Provides high torque-out and pushout resistance to safely support attached components under operating loads.
