Product Description
The CHC-032-6 is a premium concealed-head self-clinching stud engineered by PennEngineering® (PEM®). Developed to provide a high-strength, permanent external thread in thin metal sheets, this fastener installs securely into a milled blind hole. By nesting the fastener head completely within the blind cavity, the opposite side of the sheet remains perfectly smooth and unmarred, maintaining a flawless exterior aesthetic and surface integrity. Fabricated from robust 300 Series Stainless Steel, it delivers high corrosion resistance and relies on a cold-flow self-clinching process to ensure substantial load capacity along with exceptional resistance to torque-out and pushout forces.

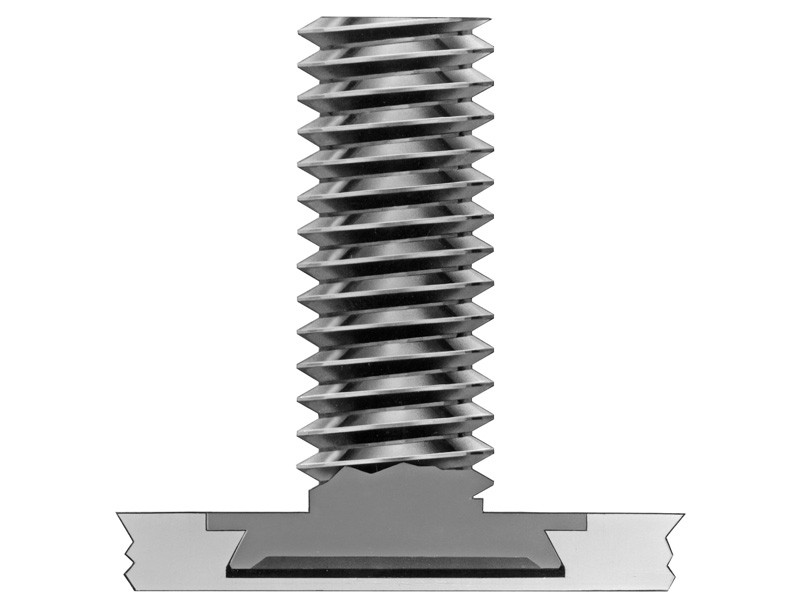

Concealed-Head Functionality: Mounts cleanly into a blind hole to keep the reverse side of the panel flat, closed, and structurally unmarred.
Permanent Self-Clinching Hold: Integrates directly into thin panels using standard pressing action, eliminating the need for welding.
Corrosion-Resistant Material: Manufactured from 300 Series Stainless Steel for long-term performance and reliability.
High Mechanical Strengths: Delivers robust resistance to high pushout and torque-out forces under operating loads.
Product Specs
- SKU:
- CHC-032-6
- Part Number:
- CHC-032-6
- Thread Size:
- .190-32 (#10-32)
- Thread Specification:
- External, ANSI B1.1, 2A

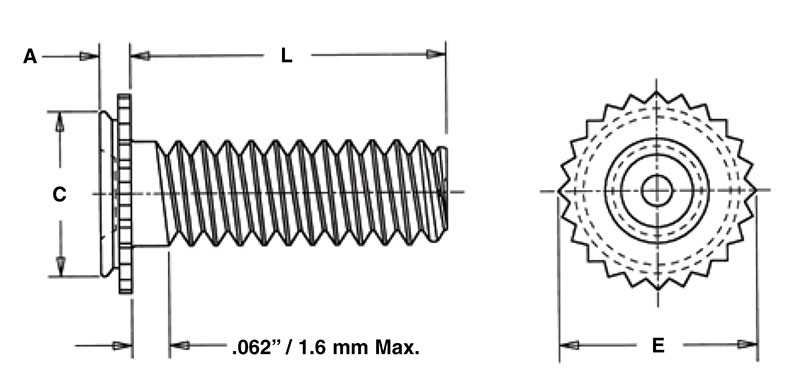

- Standoff Length (L):
- .375 in
- Thread Type:
- Unified
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or Tested Per ASTM A380
- Minimum Sheet Thickness:
- .062 in
- Hole Size in Sheet:
- .312 in (Blind Hole Diameter)
- Minimum Distance Hole Centerline to Edge:
- .250 in
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
