Product Description

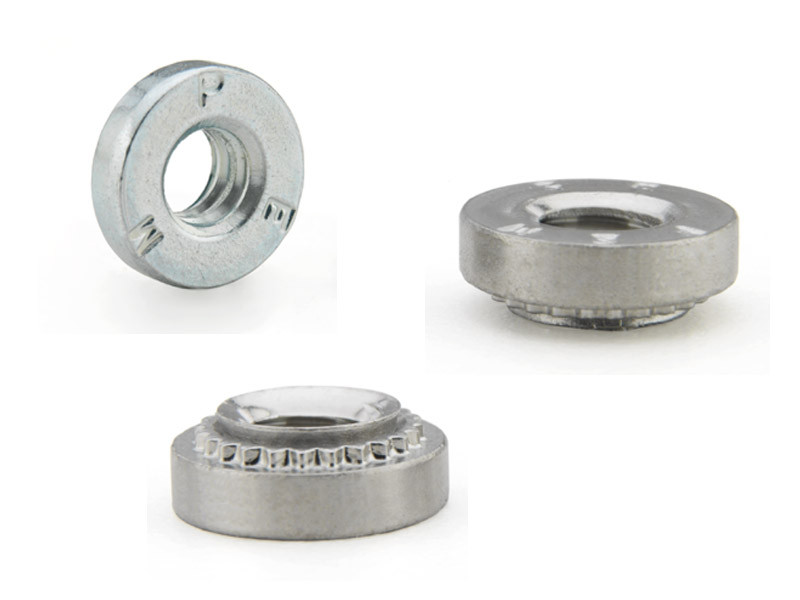

The SS-032-2ZI is a threaded nut designed for flush-mounting installation in steel or aluminum sheets with a hardness of HRB 80 or less. The fastener features a unique clinching design: when pressed into a properly sized hole using a parallel squeezing force, the host metal cold-flows into an undercut beneath the nut's head. A serrated clinching ring further secures the nut, preventing rotation during high-torque assembly.
The "2" in the part number indicates a specific shank length, optimized for sheets with a minimum thickness of .056 in (1.43 mm). The "ZI" suffix denotes a clear zinc finish that provides corrosion resistance while remaining RoHS compliant.
High Hardness Compatibility: Specifically hardened to perform in sheets where standard nuts may fail to clinch properly.
Flush Finish: The reverse side of the panel remains entirely flush after installation, allowing for clean aesthetics and space-saving designs.
Permanent Attachment: Becomes an integral part of the panel, eliminating the risks of loose hardware vibrating free during transit or operation.
Product Specs
- SKU:
- SS-032-2ZI
- Manufacturer:
- PennEngineering® (PEM®)
- Part Number:
- SS-032-2ZI
- Thread Size:
- #10-32 (.190-32)
- Thread Specification:
- Internal, ASME B1.1, 2B
- Material:
- Heat-Treated Carbon Steel
- Finish:
- Zinc plated (5µm), Type III, Colorless (ZI)
- Shank Code:
- 2
- A (Shank) Max.:
- .054 in (1.38 mm)
- Rec. Min. Sheet Thickness:
- .056 in (1.43 mm)
- Hole Size in Sheet:
- .250 in (+.003 -.000) / 6.35 mm
- C Max. (Body Diameter):
- .249 in (6.33 mm)
- E ± .010 (Flange Diameter):
- .340 in (8.64 mm)
- T ± .010 (Nut Thickness):
- .090 in (2.29 mm)
- Max. Sheet Hardness:
- HRB 80 / HB 150 or less
- Min. Dist. Hole C/L to Edge:
- .28 in (7.11 mm)
