Product Description

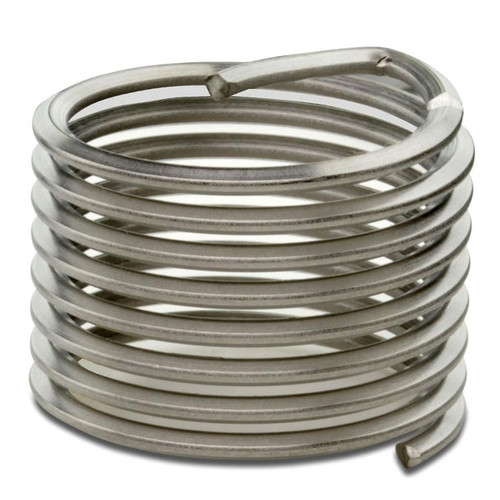

#2-56 TPI, 0.11 to 0.119" OD, 0.129" L, Nitronic 60, 5-1/4-Coils, Diamond Knurled, Free Running, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Free Running Nominal Diameter #2 TPI 56 Thread Series UNC-2A External Thread Size 0.11 to 0.119 Inch Drill Size #41 Overall Length 0.129 Inch Material UNS S21800 Nitronic 60 Tensile Strength 200000 PSI Application Plastic Diameter 1.5 Number of Coils 5-1/4 Locking Torque 20 Inch-Ounce Countersink 0.09 to 0.11 Inch Applicable Standard NASM8846, NAS1130, ASME B18.29.1
Product Videos
Custom Field
Grip Range 1.5
Inner Diameter (I.D.) 0.11 to 0.119 in.
Length 0.129 in.
Pitch 0.11 to 0.119 in.
Thread #2-56 TPI
Type Diamond Knurled, Free Running
