Product Description

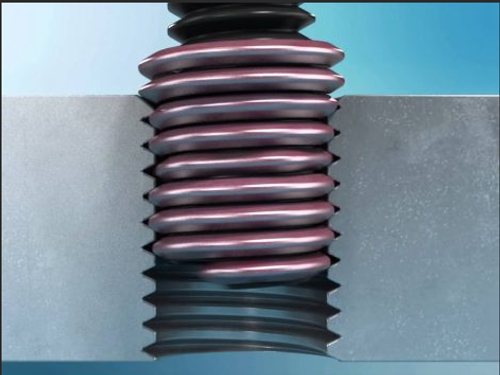

#2-56 TPI, 0.11 to 0.119" OD, 0.129" L, Matte Black, Primer Free II Coated, 304 Stainless Steel, 5-1/4-Coils, Diamond Knurled, Free Running, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Free Running Nominal Diameter #2 TPI 56 Thread Series UNC-2A External Thread Size 0.11 to 0.119 Inch Drill Size #41 Overall Length 0.129 Inch Material AS7245 304 Stainless Steel Finish Primer Free II Coated Tensile Strength 200000 to 250000 PSI Application Plastic RoHS Compliant Diameter 1.5 Number of Coils 5-1/4 Locking Torque 20 Inch-Ounce Countersink 0.09 to 0.11 Inch Color Matte Black Applicable Standard NASM8846, NAS1130, ASME B18.29.1
Product Videos
Custom Field
Grip Range 1.5
Height Yes
Inner Diameter (I.D.) 0.11 to 0.119 in.
Length 0.129 in.
Material Primer Free II Coated
Pitch 0.11 to 0.119 in.
RoHS Compliant Matte Black
Thread #2-56 TPI
Type Diamond Knurled, Free Running
