Product Description

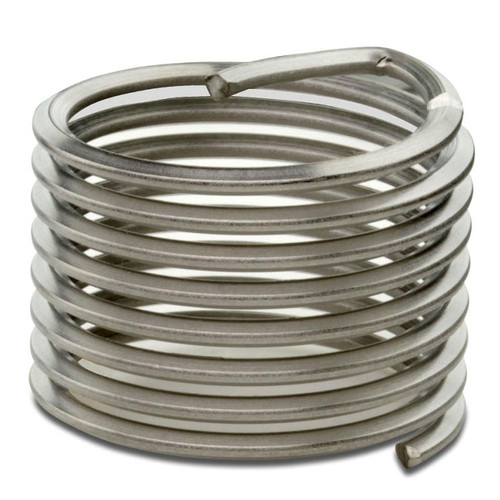

#6-32 TPI, 0.178 to 0.193" OD, 0.138" L, Nitronic 60, 2-3/4-Coils, Diamond Knurled, Free Running, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Free Running Nominal Diameter #6 TPI 32 Thread Series UNC-2A External Thread Size 0.178 to 0.193 Inch Drill Size #25 Overall Length 0.138 Inch Material UNS S21800 Nitronic 60 Tensile Strength 200000 PSI Application Plastic Diameter 1 Number of Coils 2-3/4 Locking Torque 6 Inch-Pound Countersink 0.18 to 0.21 Inch Applicable Standard NASM8846, NAS1130, ASME B18.29.1
Product Videos
Custom Field
Grip Range 1
Inner Diameter (I.D.) 0.178 to 0.193 in.
Length 0.138 in.
Pitch 0.178 to 0.193 in.
Thread #6-32 TPI
Type Diamond Knurled, Free Running
