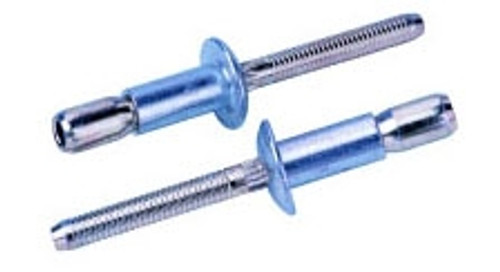

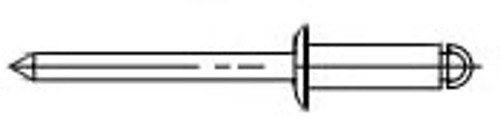

SSPV-08-06 - Rivet by Stanley Engineered Fastening (Avdel)
1/4" x 0.933" Shank, 0.525" x 0.114" Protruding Head, 0.8 to 0.375" Grip Range, Steel, Multi-Grip, Structural Break Stem, Rivet
Rivet; Type Multi-Grip, Structural Break Stem; Shank Diameter 1/4 Inch; Shank Length 0.933 Inch; Head Type Protruding; Head Diameter 0.525 Inch; Head Thickness 0.114 Inch; Recommended Hole Diameter 0.26 to 0.275 Inch; Material Steel; Material Specification BS3111 Type 9/10, SAE 10B21/10B35, DIN 1654 22B2/35B2; Finish Trivalent Zinc Clear; Grip Range 0.8 to 0.375 Inch; Shear Strength 2400 Pound-Force; Tensile Strength 1850 Pound-Force; Application Automotive, Cabinet and Enclosure, Commercial Vehicle, Domestic Appliance, Heating and Ventilation
Excellent Hole Fill Via Radially Expanded Body Provides Greater Joint Integrity, Added Water Resistance and Compensates for Irregular, Oversized, Slotted or Misaligned Holes; Can Stop Sheet Movement in Non-Standard Holes; Good Sheet Take-Up Performance for Large Gap Closing Capability; Stem Mechanically Locked Into Body Avoids Damage, Electrical Problems or Rattling Caused by Loose Stems; Multi-Grip Capability; High Shear and Tensile Strength; Visible Lock for Quick and Easy Inspection
0.8 to 0.375 in.
Multi-Grip, Structural Break Stem
Trivalent Zinc Clear
