Product Description

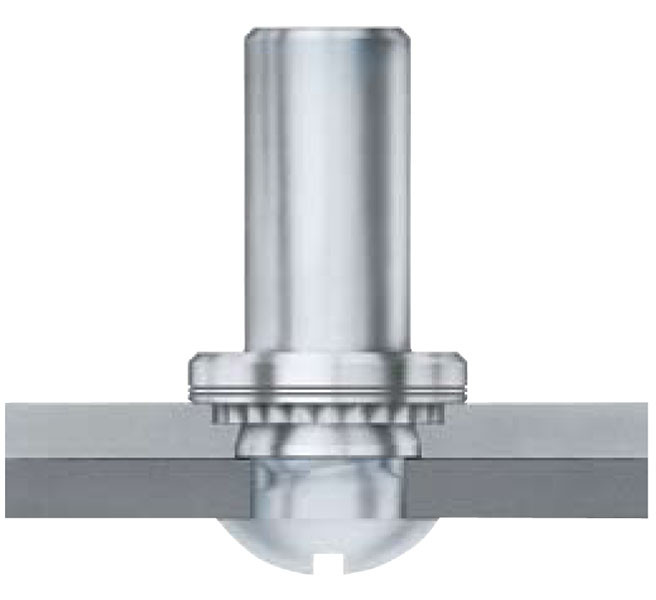

The B-832-2ZI is a self-clinching blind nut engineered to provide high-strength internal threads in thin metal sheets. This fastener is distinguished by its closed-end (blind) design, which creates a physical barrier to protect internal components from screw penetration and seals the assembly against dirt, dust, and moisture. By preventing screws from extending beyond the fastener, it eliminates the risk of damage to sensitive circuitry or adjacent parts. The self-clinching profile ensures the nut becomes a permanent part of the assembly with high torque-out and pushout resistance, while maintaining a completely flush and smooth finish on the reverse side of the host sheet.
Closed-End Protection: Barrier design prevents over-long screws from damaging internal components and seals out environmental contaminants.
Flush Rear Surface: The side opposite the installation remains smooth and unobstructed, ideal for aesthetic or clearance-critical applications.
Permanent Installation: Clinches into place to provide reusable, high-strength threads that will not loosen, rotate, or fall out.
High Performance: Provides superior load-bearing capabilities and resistance to torque in thin metal sheets where tapping is not possible.
Shank Code 2: Specifically designed for installation into thicker sheets starting at 1.4 mm / .055 in.
Product Specs
- SKU:
- B-832-2ZI
- Part Number:
- B-832-2ZI
- Thread Size:
- #8-32 (.164-32)
- Thread Specification:
- 2B, ANSI B1.1
- Shank Code:
- 2
- Sheet Thickness Compatibility:
- 1.4mm / .055 in (Minimum)
- Fastener Material:
- Carbon Steel
- Finish:
- Zinc plated per ASTM B633, Class FE/ZN 5, Type III, colorless
- Sheet Hardness Compatibility:
- HRB 80 / HB 150 or Less
- Hole Size in Sheet:
- 7.37mm / .290 in
- Minimum Distance to Edge:
- 7.9mm / .310 in

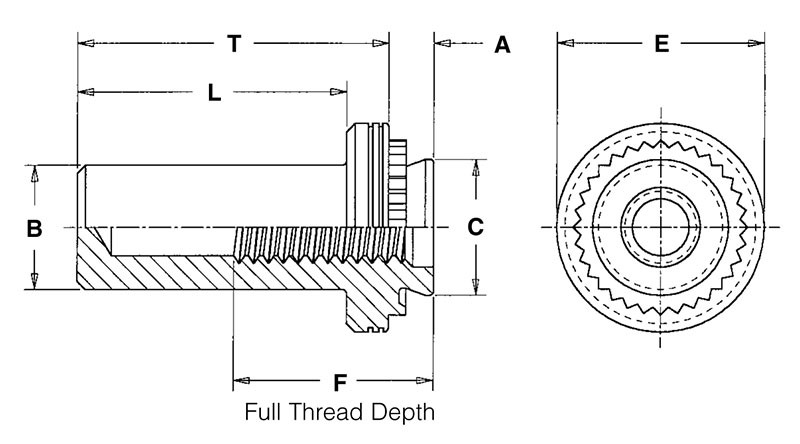

- Maximum Shank Length (A):
- 1.38mm / .054 in
