Product Description

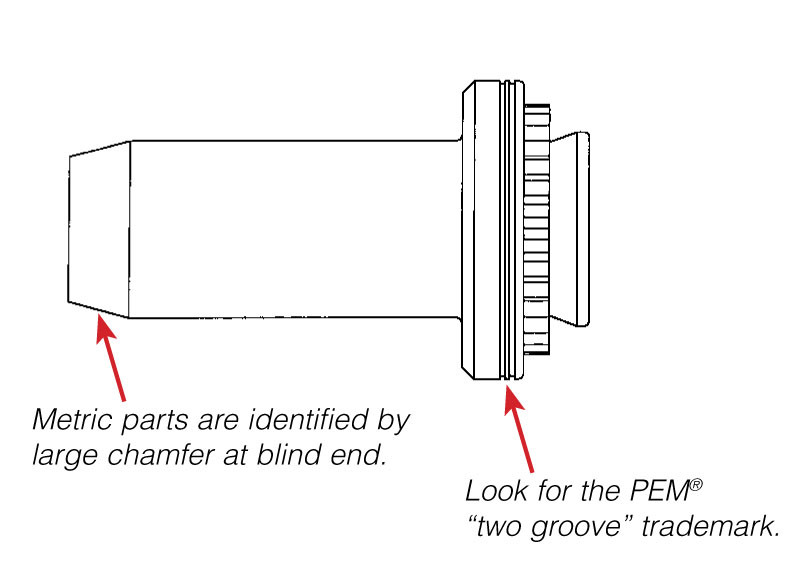

The B-632-2ZI is a self-clinching blind nut engineered to provide high-strength internal threads in thin metal sheets. This fastener is defined by its closed-end (blind) design, which acts as a protective barrier against dirt, dust, and moisture while preventing screw penetration beyond the nut. This feature is critical for protecting sensitive internal components from damage caused by over-long hardware. Designed for a permanent attachment, the self-clinching profile ensures high torque-out and pushout resistance, leaving the reverse side of the host sheet completely flush and smooth.
Environmental Sealing: The closed-end design prevents the passage of contaminants and provides a neat, finished appearance.
Component Safety: Limits screw travel to prevent damage to internal circuitry or fragile adjacent parts.
Flush Rear Surface: Ensures the back side of the metal panel remains unobstructed and aesthetically clean.
Secure Installation: Becomes an integral part of the assembly when squeezed into a punched or drilled hole, eliminating loose hardware.
Superior Performance: Offers greater load-bearing capabilities than standard tapped threads in thin materials.
Product Specs
- SKU:
- B-632-2ZI
- Part Number:
- B-632-2ZI
- Thread Size:
- #6-32 (.138-32)
- Thread Specification:
- 2B, ANSI B1.1
- Shank Code:
- 2
- Sheet Thickness Compatibility:
- 1.4mm / .055 in (Minimum)
- Finish:
- Zinc plated per ASTM B633, Class FE/ZN 5, Type III, colorless
- Sheet Hardness Compatibility:
- HRB 80 / HB 150 or Less
- Hole Size in Sheet:
- 6.38mm / .251 in
- Minimum Distance to Edge:
- 7.1mm / .280 in
- Maximum Shank Length (A):
- 1.38mm / .054 in
